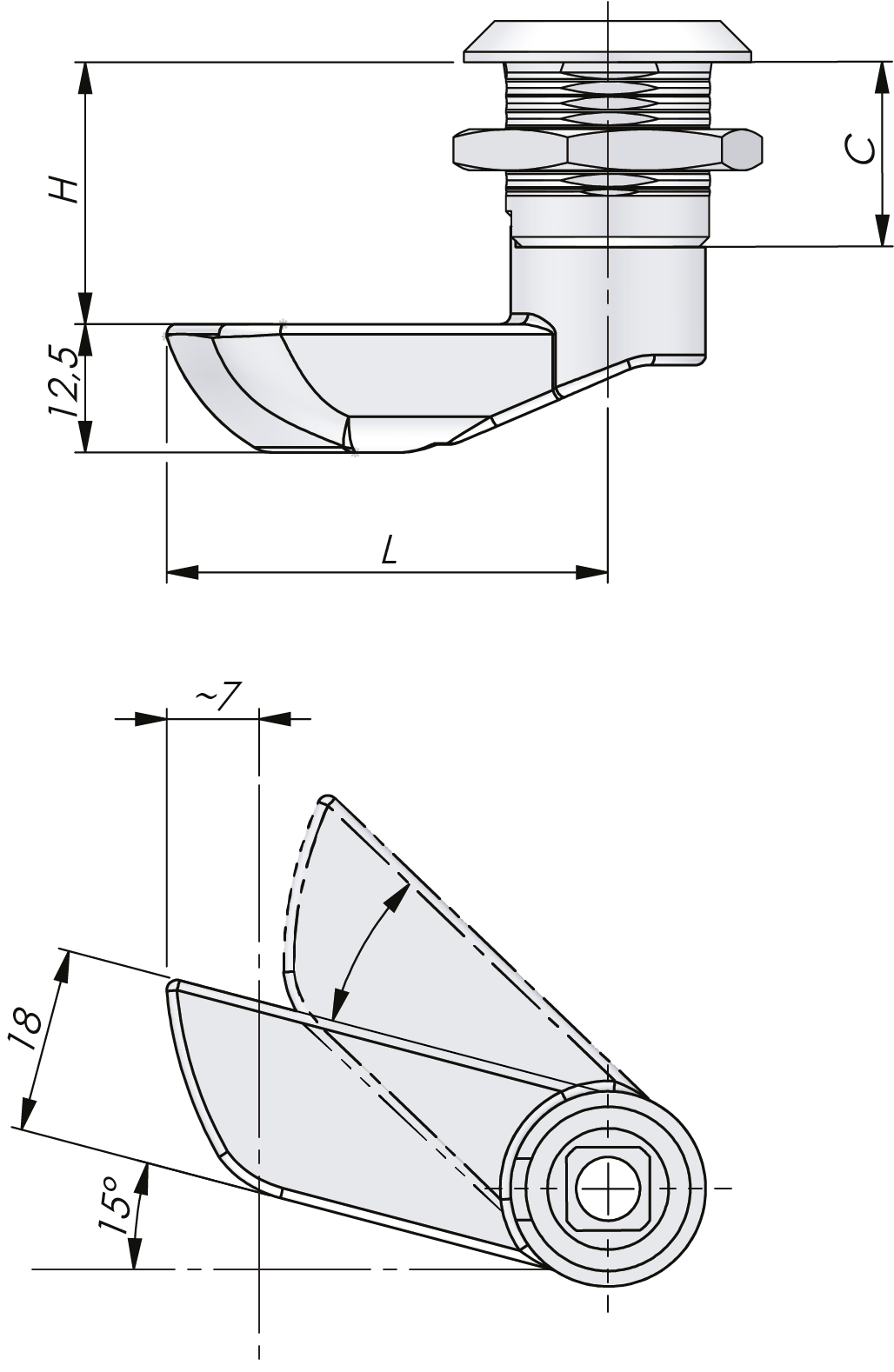

Quarter-turn Latch 18 mm
Index Code:Spring-loaded latch for slam action. Version for left hinged door is normally in 10 o'clock position and temporarily moves up to 11 o'clock position when pressed against the frame. When the door is fully closed the cam springs down to the 10 o'clock position again, latching the door.
Version for right hinged door is normally in 2 o'clock position and moves up to 1 o'clock position when pressed against the frame (inside view). Version for left hinged door is shown.
| Download PDF | Product Data Sheet |
| Download PDF | Recommended Tightening Torque |
| Download PDF | Industrilas cut out versions |
| Cam | Zinc die cast, chrome plated |
|---|---|
| Housing | Zinc die cast, chrome plated or black texture powder coated |
| Insert | Zinc die cast, chrome plated or black texture powder coated |
| Screw washer | Steel, zinc plated |
| Spring | Stainless steel 304 |
| Washer | Teflon |
| Cutout | COMBI |
|---|---|
| Standards | DIN EN 61373 |
|
|
|
|
|
|
|
SN = Standard nut. EN = Earthing nut
TUF = Assembled with TUF-lock to achieve DIN EN 61373.
