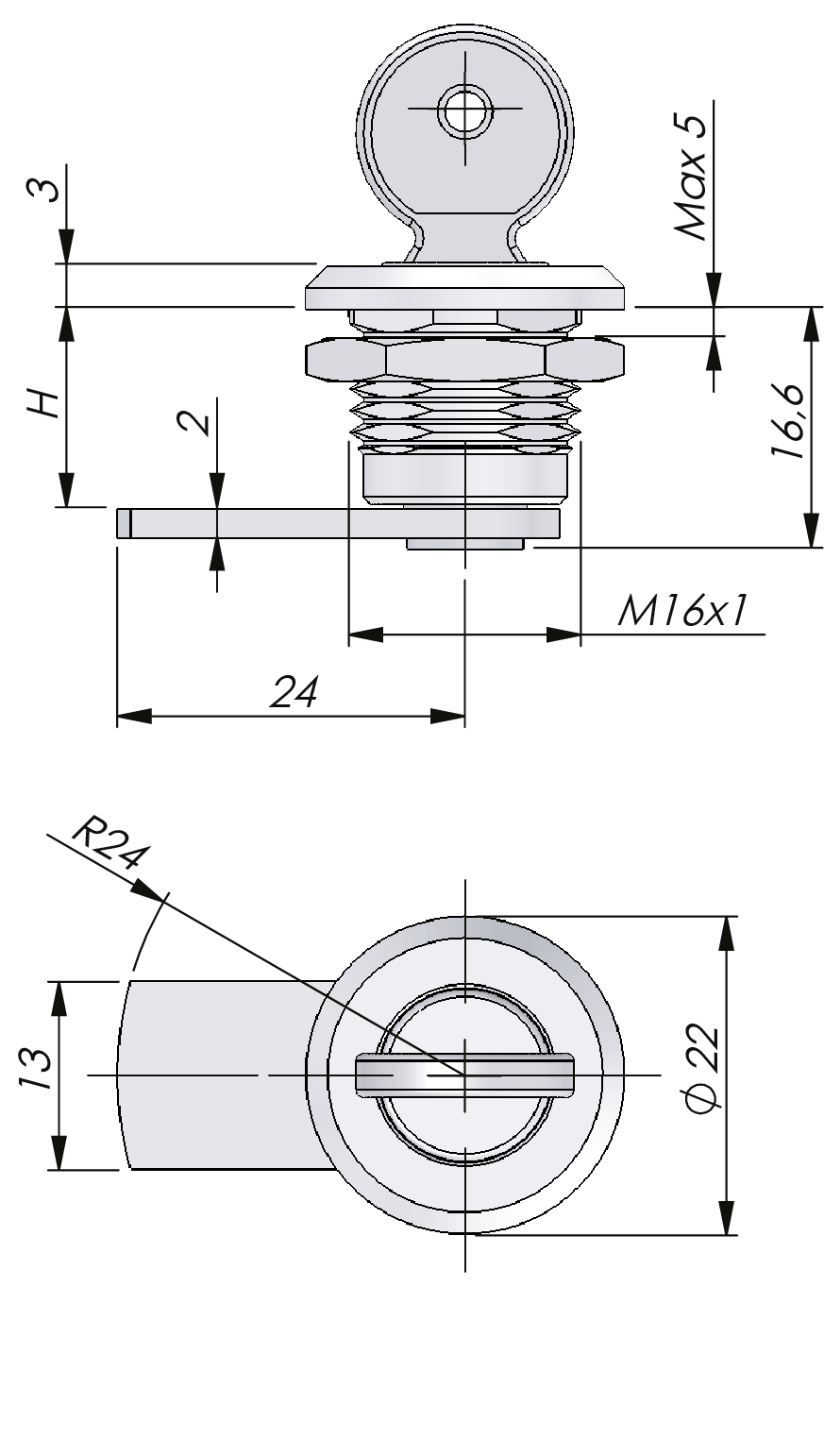

Quarter-turn Compact Cylinder Lock
Index Code:2-117
Compact cylinder lock with 90° rotation. Universal clockwise or counter-clockwise rotation when opening or closing. Supplied with cam.
| Download PDF | Product Data Sheet |
| Download PDF | Recommended Tightening Torque |
| Download PDF | Industrilas cut out versions |
| Cam | Steel, zinc plated |
|---|---|
| Cylinder | Zinc die cast, stainless steel 304 cap and dust shutter |
| Housing | Zinc die cast, chrome plated |
| Nut | Brass, zinc plated |
| Key extraction | Open / Closed |
|---|---|

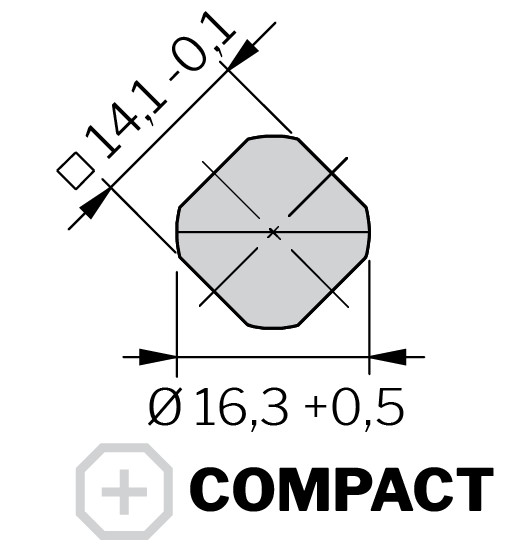

| Cutout | COMPACT |
| Cylinder information | Supplied with two keys |
| Earthing nut can be ordered separately, see related products." data-field-type="editor" data-typid="14" data-categoryname="">Notes | Earthing nut can be ordered separately, see related products. |
