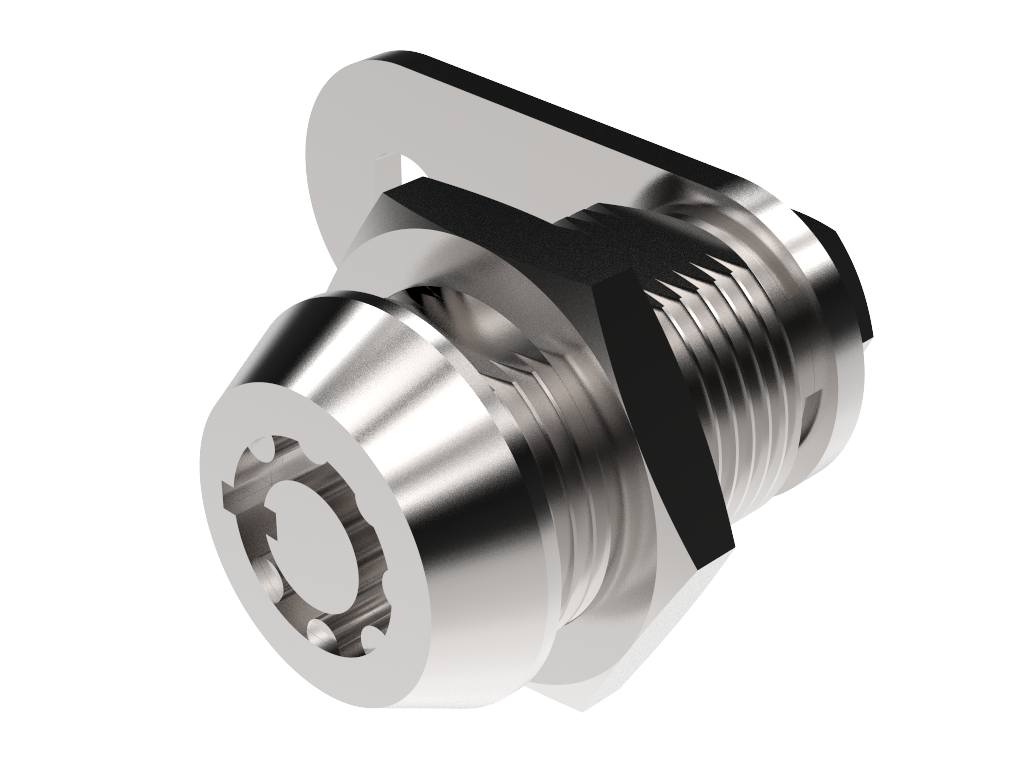

Quarter-turn Cylinder Lock
Index Code:2-720
7-pin tubular cam lock with excellent anti-pick capability. Supplied with nut and straight cam. The nut that holds the cam is equipped with mechanical thread locking. Other cams on request.
| Download PDF | Product Data Sheet |
| Download PDF | Recommended Tightening Torque |
| Cam | Steel, zinc plated |
|---|---|
| Centre spindle | Brass, chrome plated |
| Housing | Zinc die cast, chrome plated |
| Nut | Brass, zinc plated |
| Key extraction | Closed |
|---|---|
| Cylinder information | Keyed to differ on request Supplied with two keys |
| Choose CAD format here:
To download CAD-Files for this product |
| Download here: |
To download CAD-files, you need an Industrilas account. It only takes a minute.
