Quarter-Turn Flush mount Vibration Resistant 44 mm

Quarter-Turn Flush mount Vibration Resistant 44 mm

Name: Quarter-Turn Flush mount Vibration Resistant 44 mm
Availability: OutOfStock

Index Code:

2-045

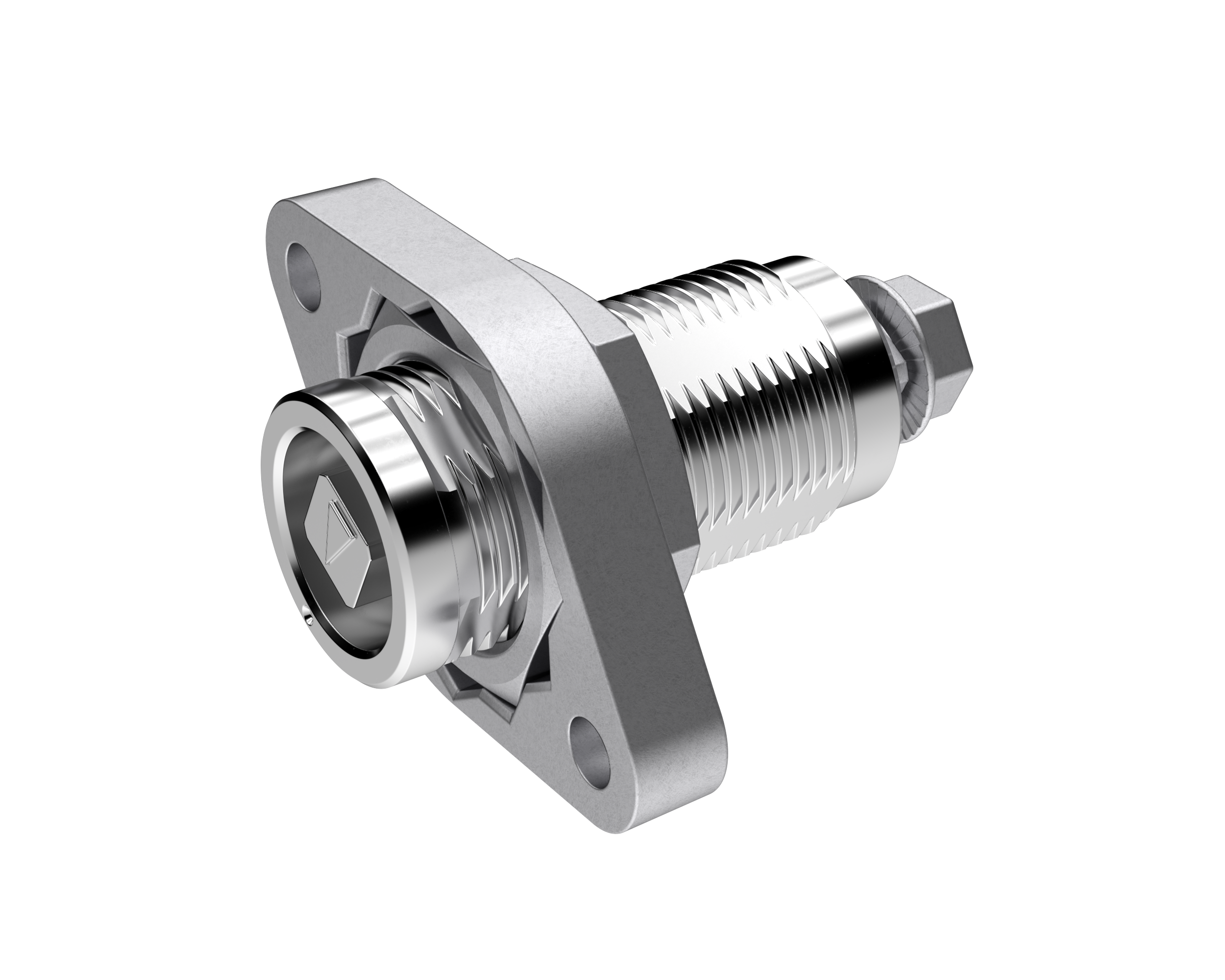

Vibration resistant quarter-turn designed for complete flush mounting in floor- and door panels. Mounted from the backside of the panel. Maximum panel thickness 24 mm.

You design this vibration resistant quarter-turn latch to accommodate your needs by combining your choices of housing, nut, insert, screw and cam. The latch can be delivered un-assembled, pre-assembled with enclosed cam or fully assembled.

The latch clicks to open and closed positions with good tactile feedback.

DownloadsMaterial

Download PDF	Product Data Sheet
Download PDF	Recommended Tightening Torque

Housing	Zinc die cast, chrome plated or black texture powder coated
Insert	Zinc die cast, chrome plated or black texture powder coated
Cam and screw	Steel, zinc plated
Washer	Stainless steel 304
Mounting bracket	Zinc die cast, zinc plated

To download CAD-files, you need an Industrilas account. It only takes a minute.

A product number is created by combining the figures in each column (AAAA-BCCDEF-HHLL)

AAAA	Housing
2441	22.0.44, flush mounted

B	Nut
0	SN
2	SN+TUF

CC	Insert
01	Square 6
03	Square 7
05	Square 8
07	Square 8 / slotted
08	Square 8 / M6
11	Square 8 / recessed
14	Triangle 7
15	Triangle 8
16	Triangle 10
17	Triangle 10 / M5
18	Triangle 10 / M6
19	Triangle 10 / SEN
21	Triangle 10 - radius ES3
22	Double Bit 3
24	Double Bit 5
26	Slotted
28	Slotted with arrow
29	Slotted recessed
31	Hexagon 8,5
32	Hexagon 11
34	Recessed hexagon 8
35	Recessed hexagon 10
36	Recessed hex 8 / 3 mm pin
37	Solid plug
38	Stockholm Energy
39	Triangle 10 - radius

D	Material, surface treatment
2	Zinc die cast, chrome plated
6	Zinc die cast, black powder coated

E	Assembly
0	Not assembled
2	Enclosed cam
4	Assembled

F	Cam
0	Steel

HHLL	H/L in mm
0000	No cam
3045	30 / 45
3245	32 / 45
3445	34 / 45
3645	36 / 45
3845	38 / 45
4045	40 / 45
4245	42 / 45
4445	44 / 45
4645	46 / 45
4845	48 / 45
5045	50 / 45
5245	52 / 45
5445	54 / 45
5645	56 / 45
5845	58 / 45
6045	60 / 45
6245	62 / 45
6445	64 / 45
6645	66 / 45
6845	68 / 45
7045	70 / 45
7245	72 / 45
7445	74 / 45
7645	76 / 45

SN = Standard nut.

TUF = Assembled with TUF-lock screw to achieve DIN EN 61373

To fulfill DIN EN 61373 the latch can be supplied with screw with mechanical thread lock, see column B (Nut).
