2-043-30 |

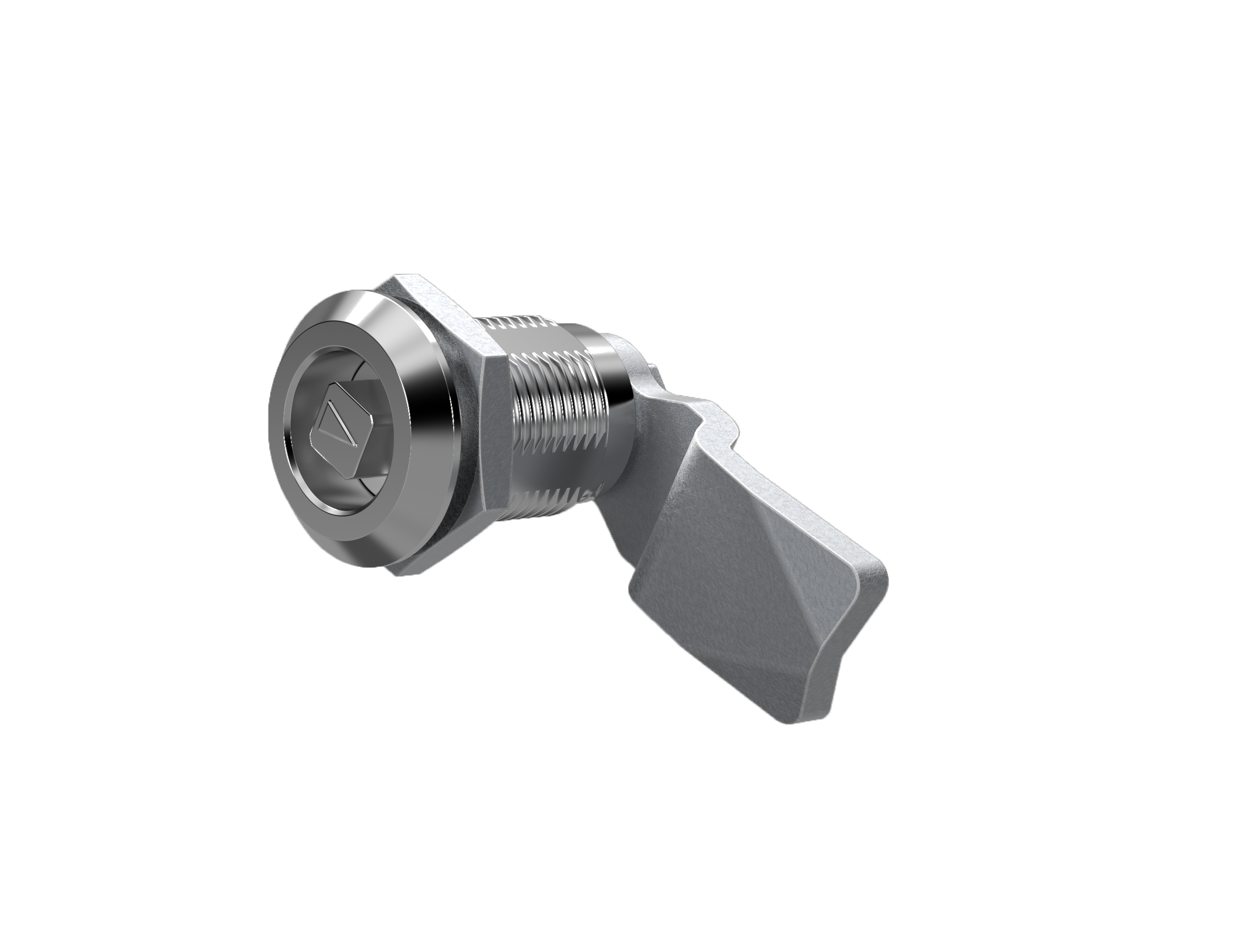

Quarter-Turn Vibration Resistant 30 mm
Index Code:2-043-30
Design this vibration resistant quarter-turn latch to accommodate your needs by combining your choices of housing, nut, insert, screw and cam. The latch can be delivered un-assembled, pre-assembled with enclosed cam or fully assembled.
The latch clicks to open and closed positions with good tactile feedback.
Vibration resistant according to DIN EN 61373. Available with IP66 protection with integrated PUR-gasket.
| Download PDF | Product Data Sheet |
| Download PDF | Recommended Tightening Torque |
| Housing | Zinc die cast, chrome plated or black texture powder coated |
|---|---|
| Insert | Zinc die cast, chrome plated or black texture powder coated |
| Cam and screw | Steel, zinc plated |
| Standard nut | Zinc die cast, zinc plated |
| Earthing nut | Zinc die cast, zinc plated |
| Washer | Stainless steel 304 |
| Cutout | COMBI |
|---|
To download CAD-files, you need an Industrilas account. It only takes a minute.
A product number is created by combining the figures in each column (AAAA-BCCDEF-HHLL)
|
|
|
|
|
|
|
SN = Standard nut. EN = Earthing nut.
TUF = Assembled with TUF-loc screw to achieve DIN EN 61373.
