Industrilas Klima-flex™ 1
A system of well-proven and flexible solutions that can be installed regardless of door thickness or whether the door opens inwards or outwards. Klima-flex 1 includes a variety of latching units, handles and inside safety options, as well as an acid-proof, stainless steel solution. The system includes both surface-mounted and through-mounted options.

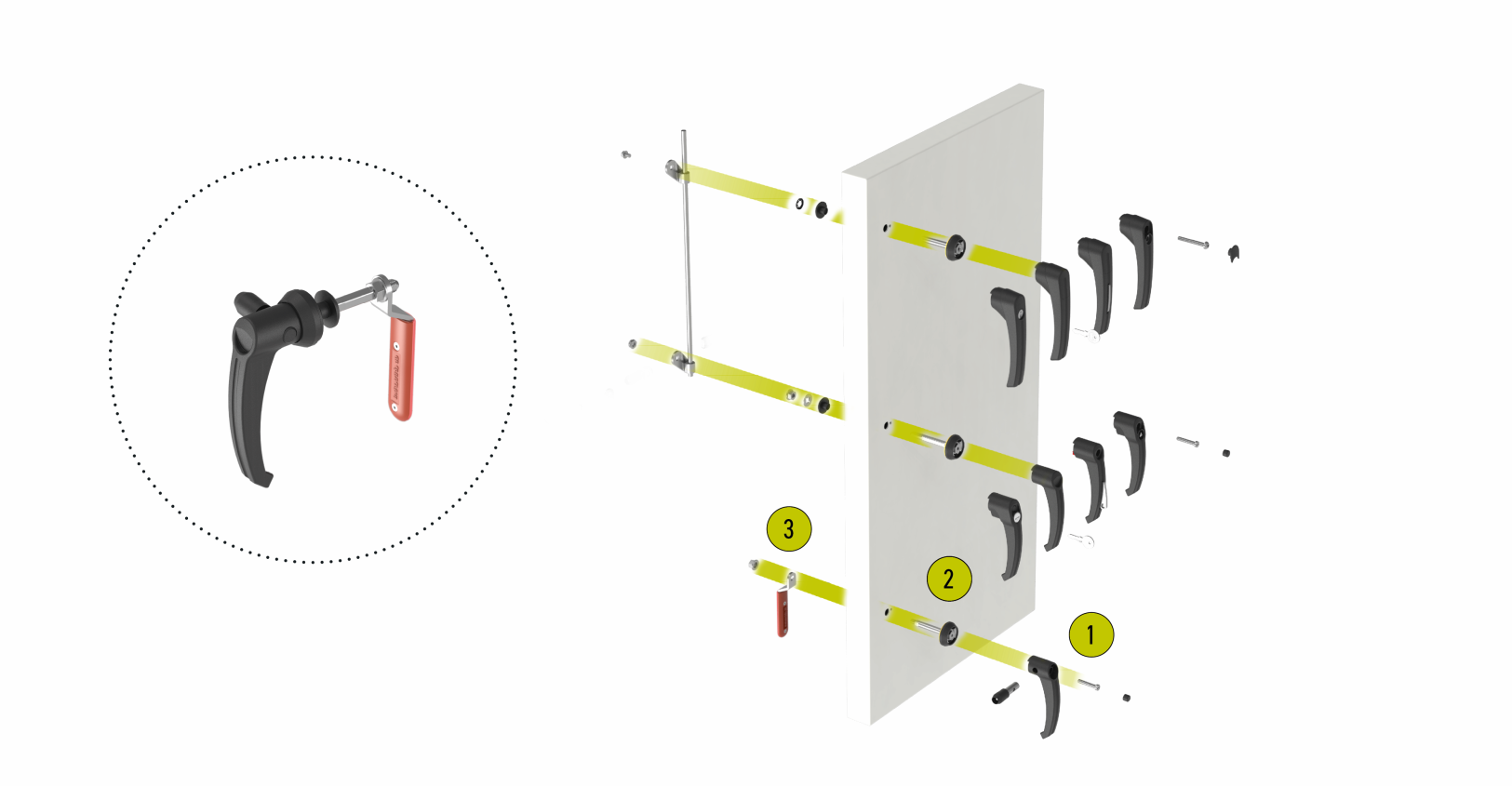

OUTSWING DOORS
- Choose a handle
- Choose a latching mechanism
- Add a roller cam
- Add an inside handle or other accessories

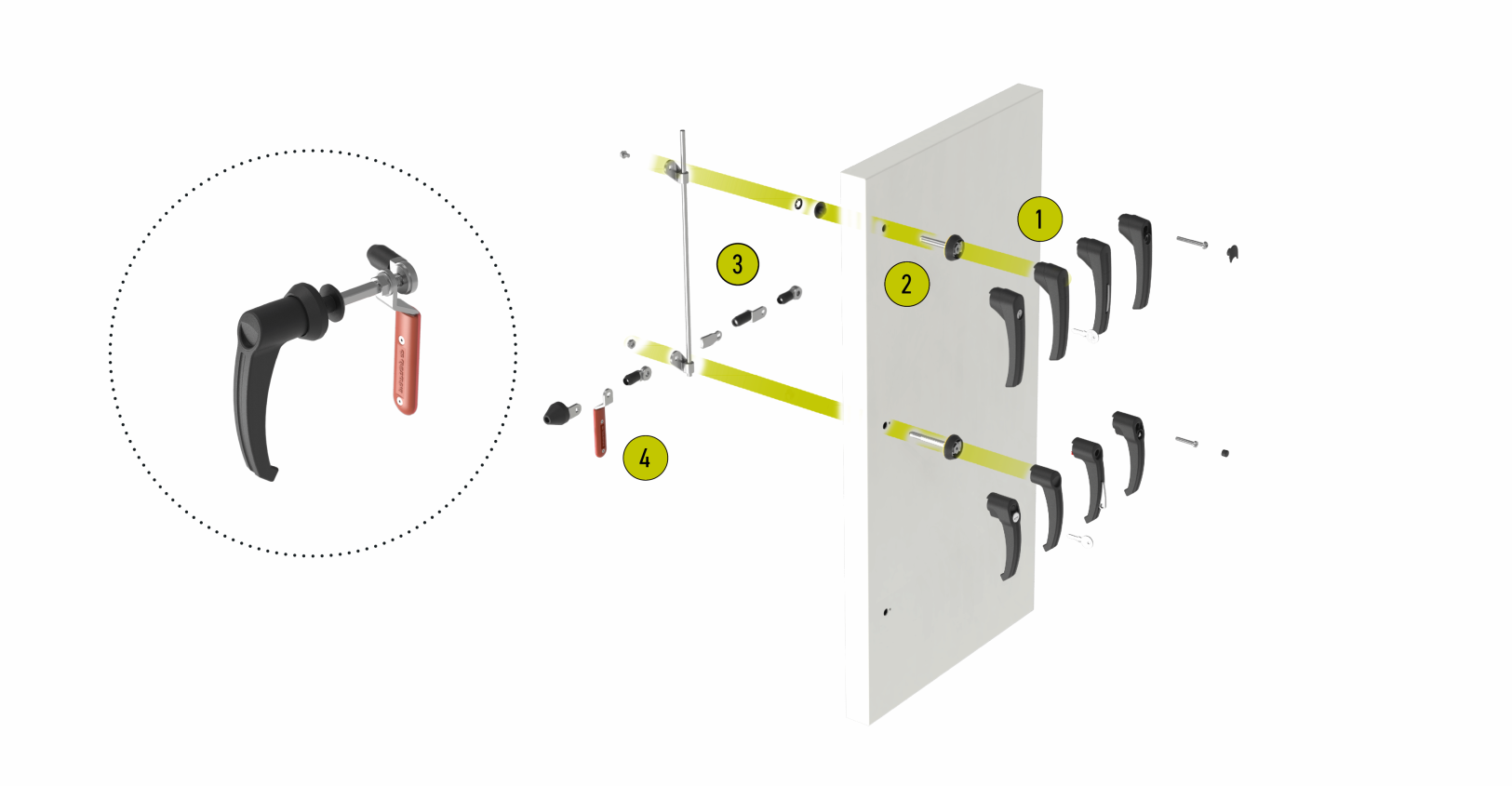

INSWING DOORS
- Choose a handle
- Choose a latching mechanism
- Add an inside handle if necessary

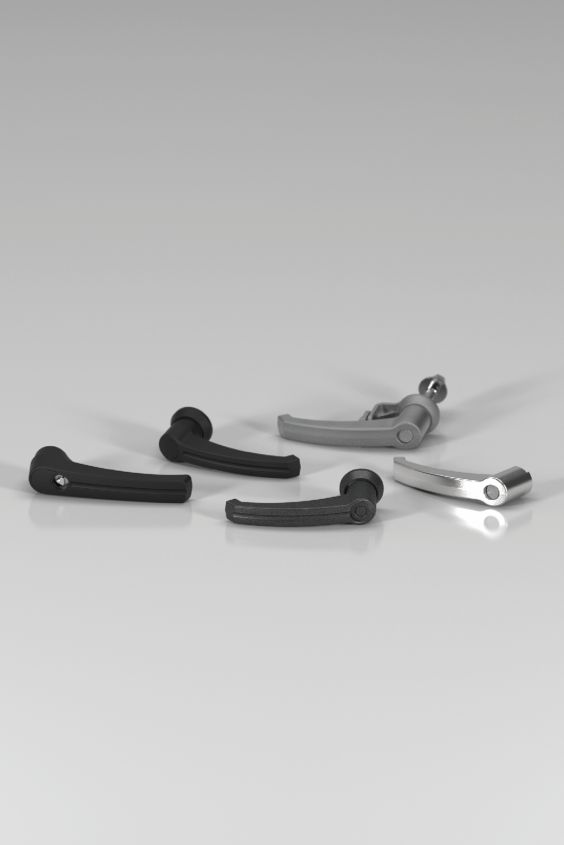

Klima-flex handles fit both outswing and inswing doors. They are available in four locking options: tool-operated, pad-lockable, key-locking and non-locking. Check the individual handles to find the one most suited to your requirements. To reduce the risk of damage during transport, Klima-flex handles can easily be attached onsite, at the final destination of the HVAC unit.
KLIMA-FLEX 1 HANDLE
Handle for both outswing and inswing doors. Handles for inswing doors are supplied with a customized roller cam. The handle is manufactured in glass fibre reinforced polyamide. Available in tool-operated, key-locking, pad-lockable and non-locking versions.
VIEW PRODUCT
KLIMA-FLEX 1 ACID-PROOF LATCHING SYSTEM
A complete acid-proof stainless steel latch and handle configuration. This corrosion resistant solution is perfectly suited for demanding applications in harsh environments, such as offshore. Available in a pad-lockable version.
VIEW PRODUCT
KLIMA-FLEX 2 HANDLE FOR KLIMA-FLEX 1 LATCH
With these handles you can equip your Klima-flex 1 latching solution with Klima-flex 2 handles. The handles are manufactured in glass fibre reinforced polyamide. Available in tool-operated, key-locking, pad-lockable and non-locking versions.
VIEW PRODUCT
KLIMA-FLEX 1 ACID-PROOF HANDLE
Corrosion resistant handle in acid-proof stainless steel 316. Fits all latch units in the Klima-flex 1 series and is available in pad-lockable and non-locking versions.
VIEW PRODUCT
KLIMA-FLEX 1 METAL HANDLE
Metal handle that fits all Klima-flex 1 latch units. The handle is manufactured in die-cast zinc with a black powder coating. Available in a non-locking version.
VIEW PRODUCT
KLIMA-FLEX 1 LATCH UNIT INSWING DOOR
Easily operated latch unit for inswing doors. Mounted with screws or rivets.
VIEW PRODUCT

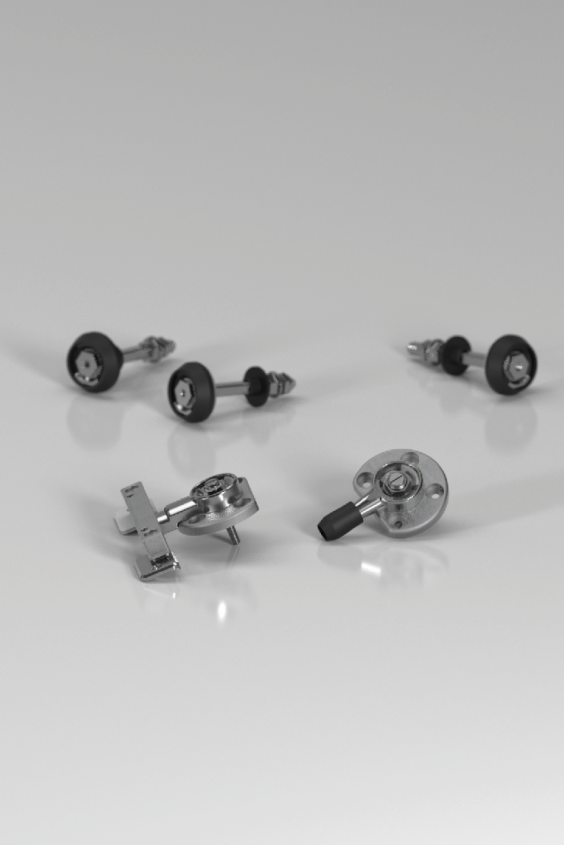

KLIMA-FLEX 1 LATCH UNIT
Available in several lengths and in two cut-out versions: Combi and K-Flex. Combi is fixed with a spacer nut and K-Flex is fixed with a cam, a regular nut or a starlock washer. Various latch units are available.
VIEW PRODUCT
KLIMA-FLEX 1 LATCH UNIT STAINLESS STEEL
Available in several lengths. The cam can be placed anywhere on the threaded area of the shaft using counter nuts. The latch unit is fixed with a starlock washer and can be combined with all inside options.
VIEW PRODUCT
KLIMA-FLEX 1 SURFACE MOUNTED LATCH UNIT
Latch unit for outswing doors, supplied with or without an adjustable, surface mounted striker. The latch point may be combined with all Klima-flex 1 handles.
VIEW PRODUCT

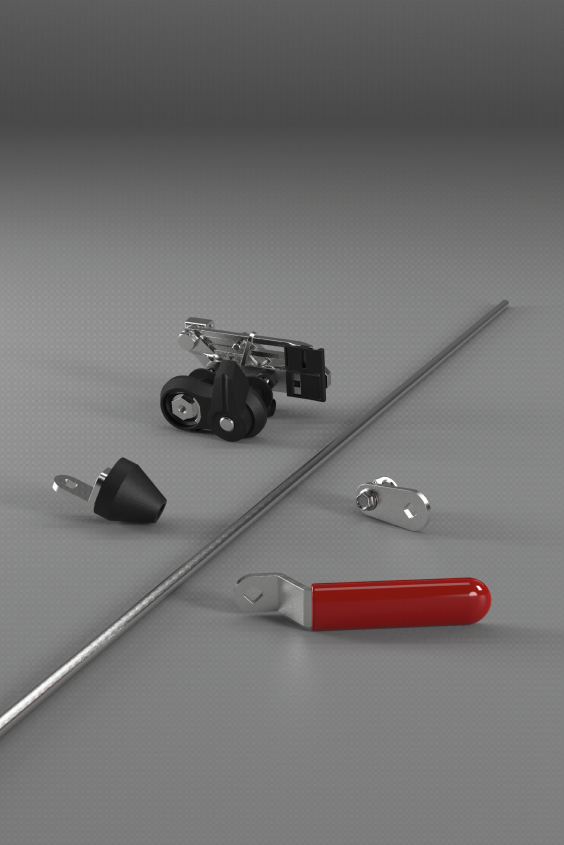

KLIMA-FLEX 1 INSIDE HANDLE
Inside handle for Klima-flex 1. When the handle is used as an emergency handle it should only be combined with non-locking latch units. Manufactured in stainless steel or zinc plated steel, with grip in glass fibre reinforced polyamide
VIEW PRODUCT
KLIMA-FLEX 1 SAFETY CATCH
Prevents the door from flying open on pressurized HVAC units. The safety catch captures the door while positive air pressure escapes and when the secondary knob is turned, the door is opened safely. Compatible with all handles in the Klima-flex 1 system.
VIEW PRODUCT
KLIMA-FLEX 1 ROLLER CAM
Roller cams are designed for smooth operation – they reduce operational friction and increase gasket compression. They are easy to install and are available in several sizes and shapes.
VIEW PRODUCT
KLIMA-FLEX 1 ROD LINK
Rod links are used to operate two or more latch units with one handle. The remote latch units are connected to the handle using interlink rods and rod links.
VIEW PRODUCT
KLIMA-FLEX INTERLINK ROD
To operate several latch units with one handle, connect the rods with an interlink rod. The rod link clamps onto the interlink rod, connecting several latching units to one handle.
VIEW PRODUCT
