Hatch Support

Index Code:
5-080

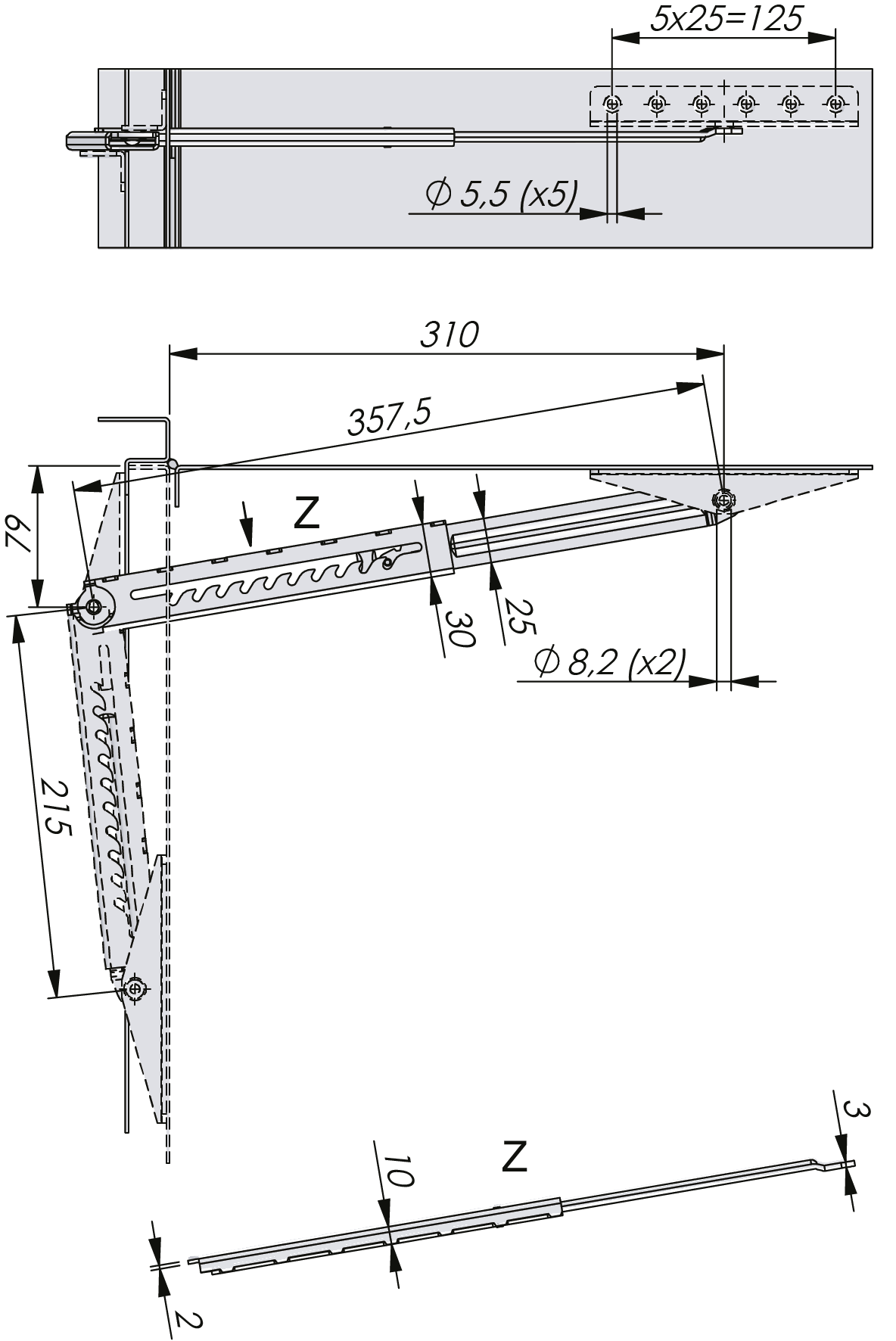

Telescopic cover support that can keep the door open at several positions. To close the door or panel, simply open it to its maximum open position and the cover support will unlock and slide back to the closed position. Universal left and right mounting. Mounting bracket and bushing are optional items and ordered separately. The bushings can be used with or without the mounting bracket and are placed in the two mounting holes to reduce friction and prevent wear on the cover support.
Download PDF
Product Data Sheet
Download PDF
Recommended Tightening Torque

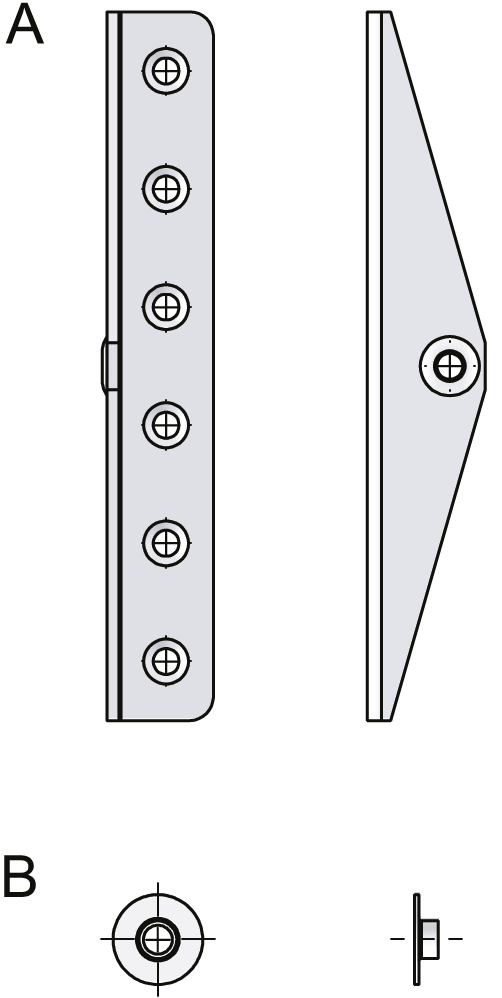

BushingSteel, zinc plated
Mounting bracketSteel, zinc plated
Cover supportSteel, zinc plated
Choose CAD format here:

To download CAD-Files for this product
1. Select CAD-format
2. Click the green cube icon to generate CAD-Files
3. Wait until the download symbol is completed
4. Click the download symbol to download

Download here:
To download CAD-files, you need an Industrilas account. It only takes a minute.
or Create Account
