Handle rotation 90° in both directions

Spacer PA6

Index Code:
2-411-02

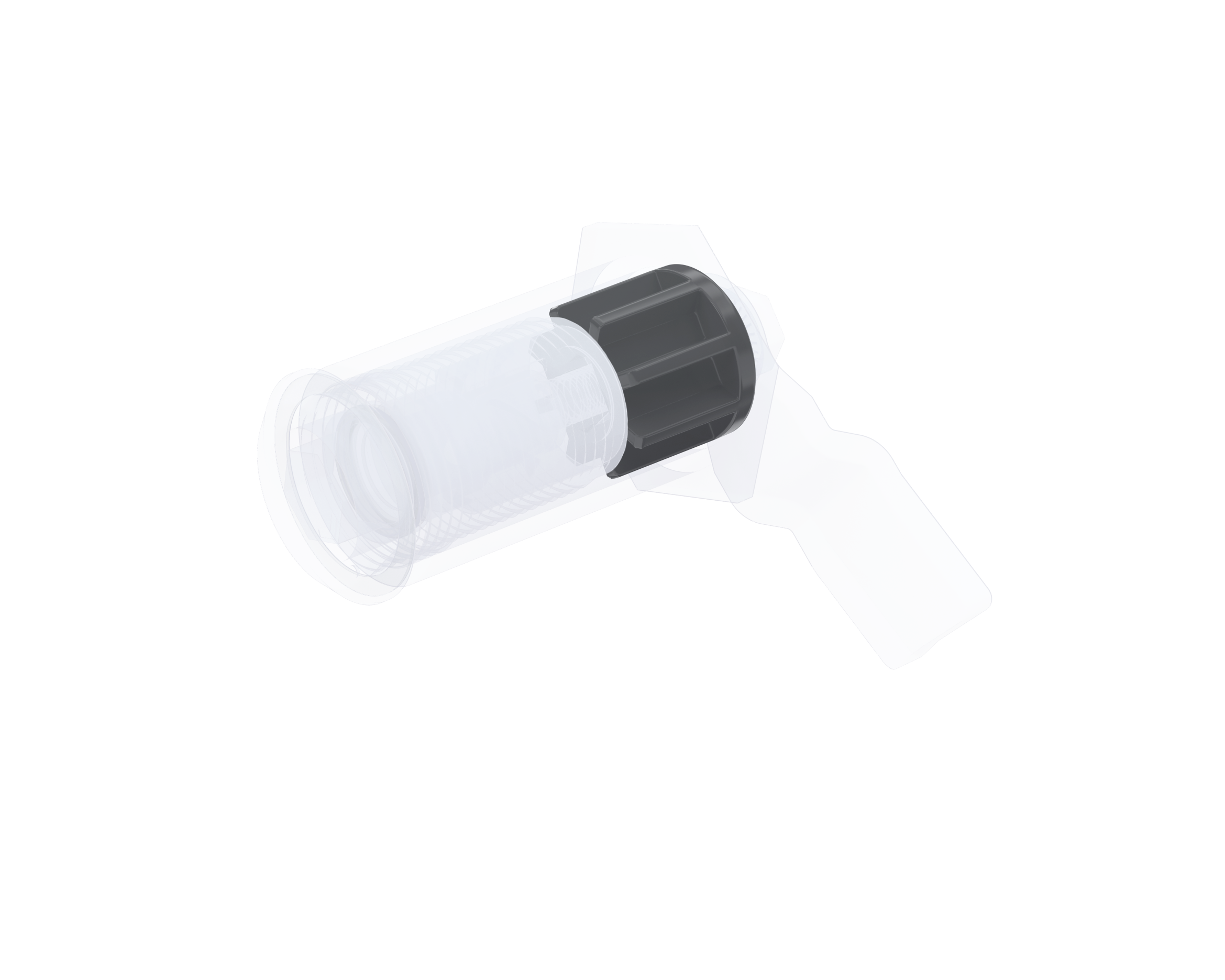

This polyamide spacer is designed to be used with polyamide spacer nut (2-411-01) mounted at Industrilas 35 mm compression latches (see related products). The use of this spacer and spacer nut increase the thermal insulation at HVAC doors. Designed for doors with panel thickness 45-47 mm, depending on thickness of metal sheets.

Longer screw for mounting of the cam on the housing with spacer is included.

Download PDF
Product Data Sheet
SpacerGlass fibre reinforced polyamide (PA6GF30)
ScrewSteel, zinc plated or stainless steel 304
