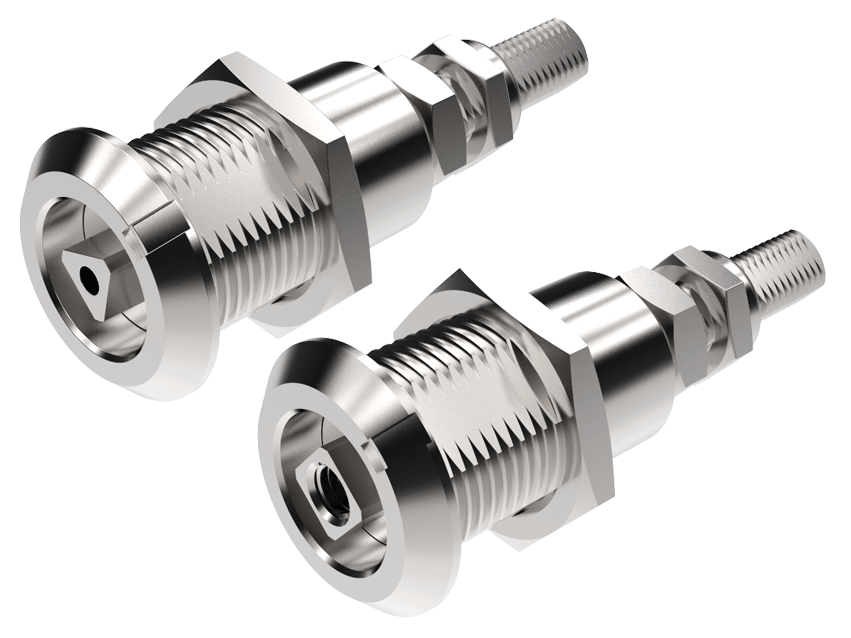

Compression Latch 35 mm
Index Code:2-136

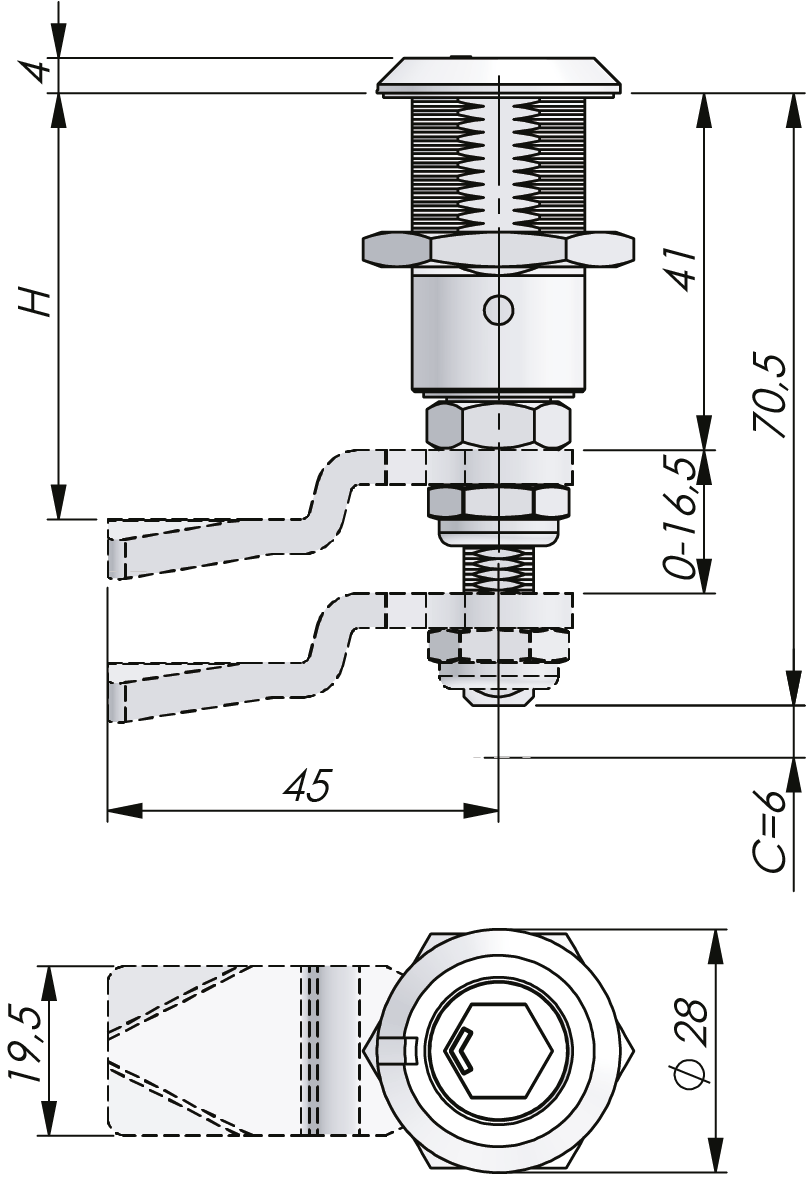

Compression latch that closes and tightens with a single continuous half-turn motion. The first 90° turn moves the cam 90°, the second 90° turn retracts the cam 6 mm. This compression is shown as C in the drawing.
The extended, threaded shaft allows you to place the cam along its entire length, resulting in a long distance for adjusting (a total of 20 mm). Fix the cam with counter-nuts. The latch is supplied assembled and cam is ordered separately.
Protection degree IP65 is also classed "waterproof according to NEMA 4".
Download PDF | Product Data Sheet |
Download PDF | Recommended Tightening Torque |
Download PDF | Industrilas cut out versions |
Counter-nuts | Steel, zinc plated |
---|---|
Extended shaft | Steel, zinc plated |
Housing | Zinc die cast, chrome plated or black coated |
Insert | Zinc die cast, chrome plated or black coated |
Nut | Zinc die cast, zinc plated |
Standards | IP65 NEMA 4 DIN EN 61373 |
---|---|
Cutout | COMBI |
Choose CAD format here:
To download CAD-Files for this product |
Download here: |
To download CAD-files, you need an Industrilas account. It only takes a minute.
Other inserts on request.
