Handle rotation 90° in both directionsOpening angle of hinges, applicable angle shown in numbersProfile cylinderRound cylinderBestLock cylinderScandinavian oval cylinderTool operated insertPadlock loop90° opening angle of hinges

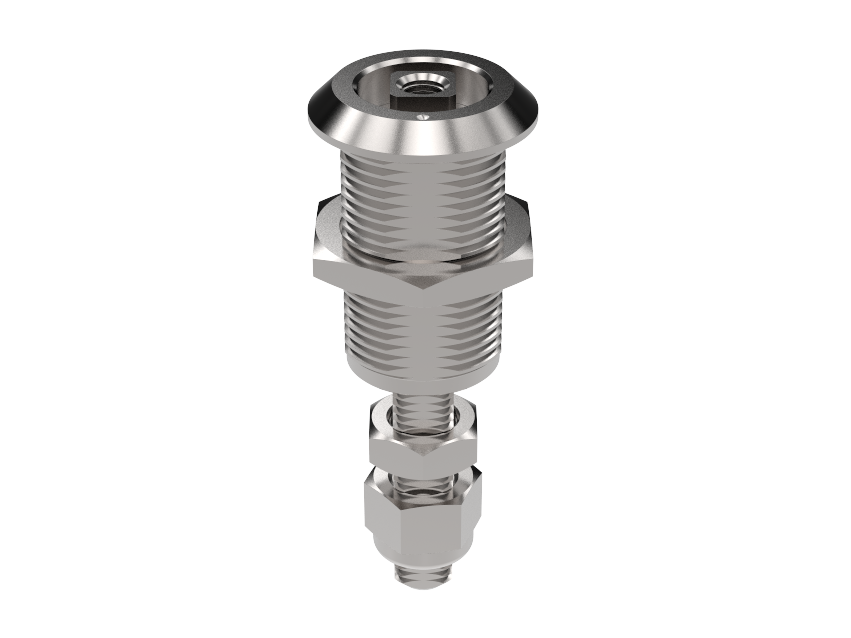

Compression Latch Stainless Steel 35 mm

Index Code:
6-136

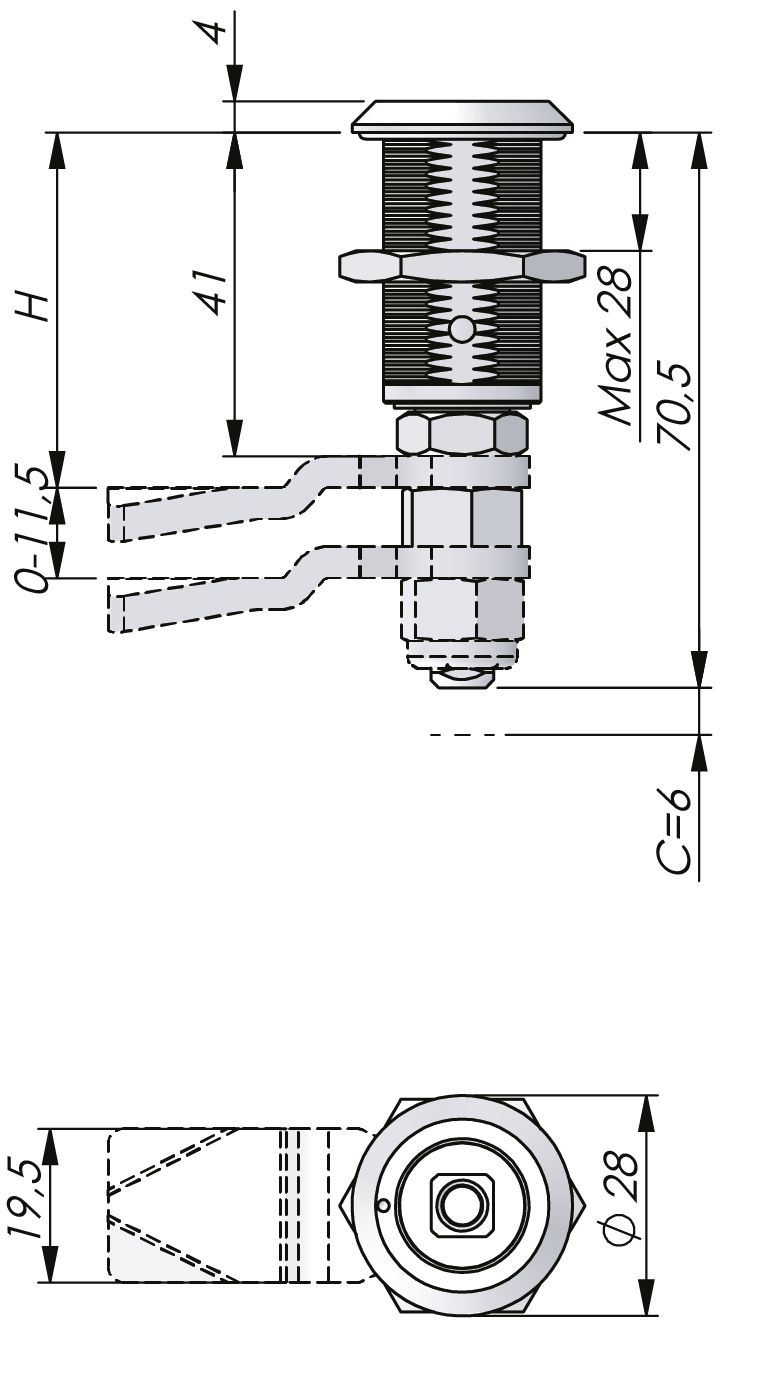

Quarter-turn compression latch that close and tighten with a single half-turn motion. The first 90° turn moves the cam 90° and the following 90° turn retracts the cam 6 mm. The extended, threaded shaft allows you to place the cam along its entire length, resulting in vast adjustment possibilities. The cam is fixed with counter-nuts.

The latch is delivered assembled while the cam is ordered separately. Protection degree IP65 and classified as waterproof according to NEMA 4.

Other inserts are available.

Download PDF
Product Data Sheet
Download PDF
Recommended Tightening Torque
Counter-nutsStainless steel 303
InsertStainless steel 303
HousingStainless steel 304
NutStainless steel 303
CutoutCOMBI
StandardsIP65
NEMA 4
DIN EN 61373
Notes

One counter-nut is equipped with Nyloc™ thread lock.
