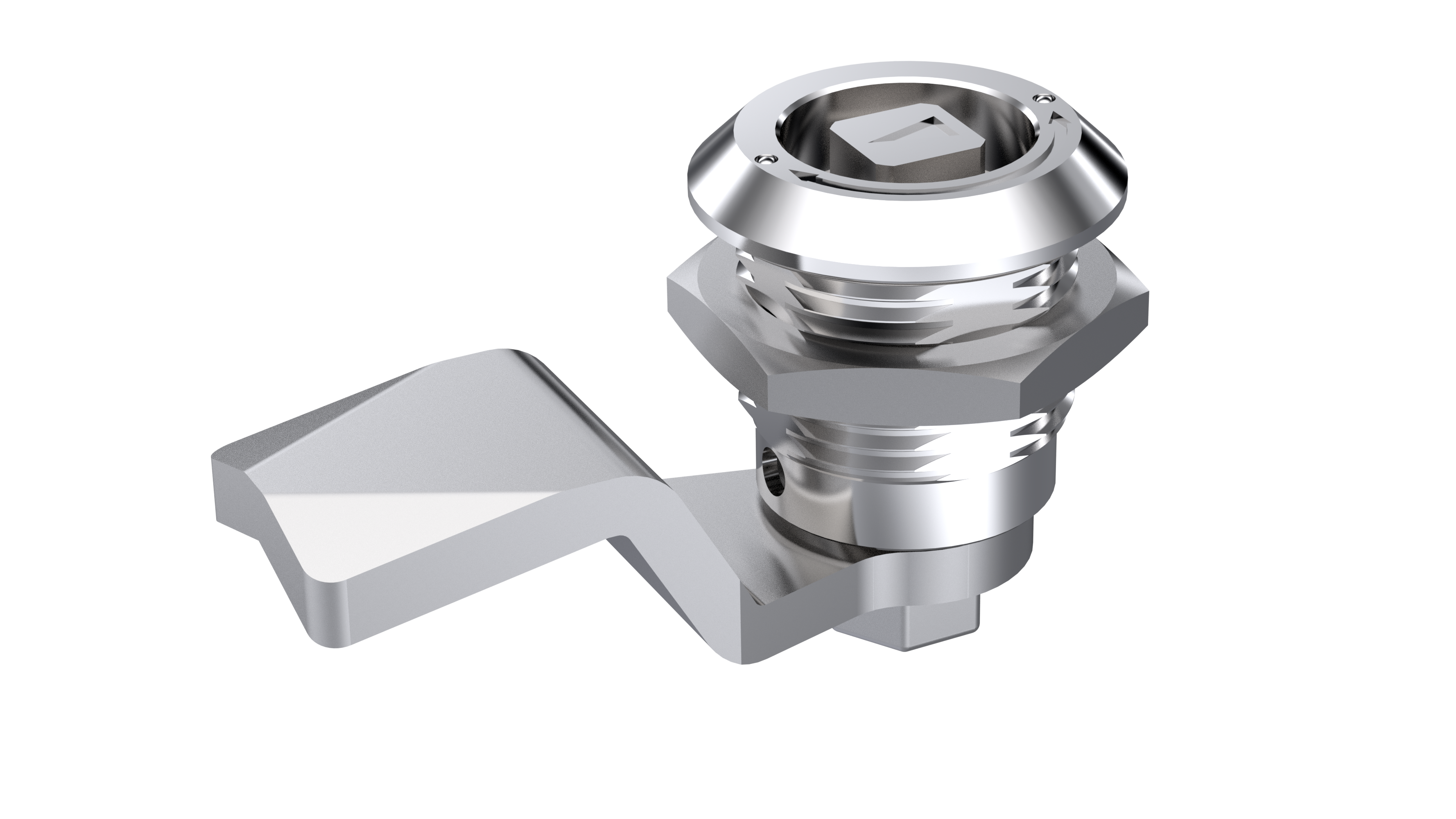

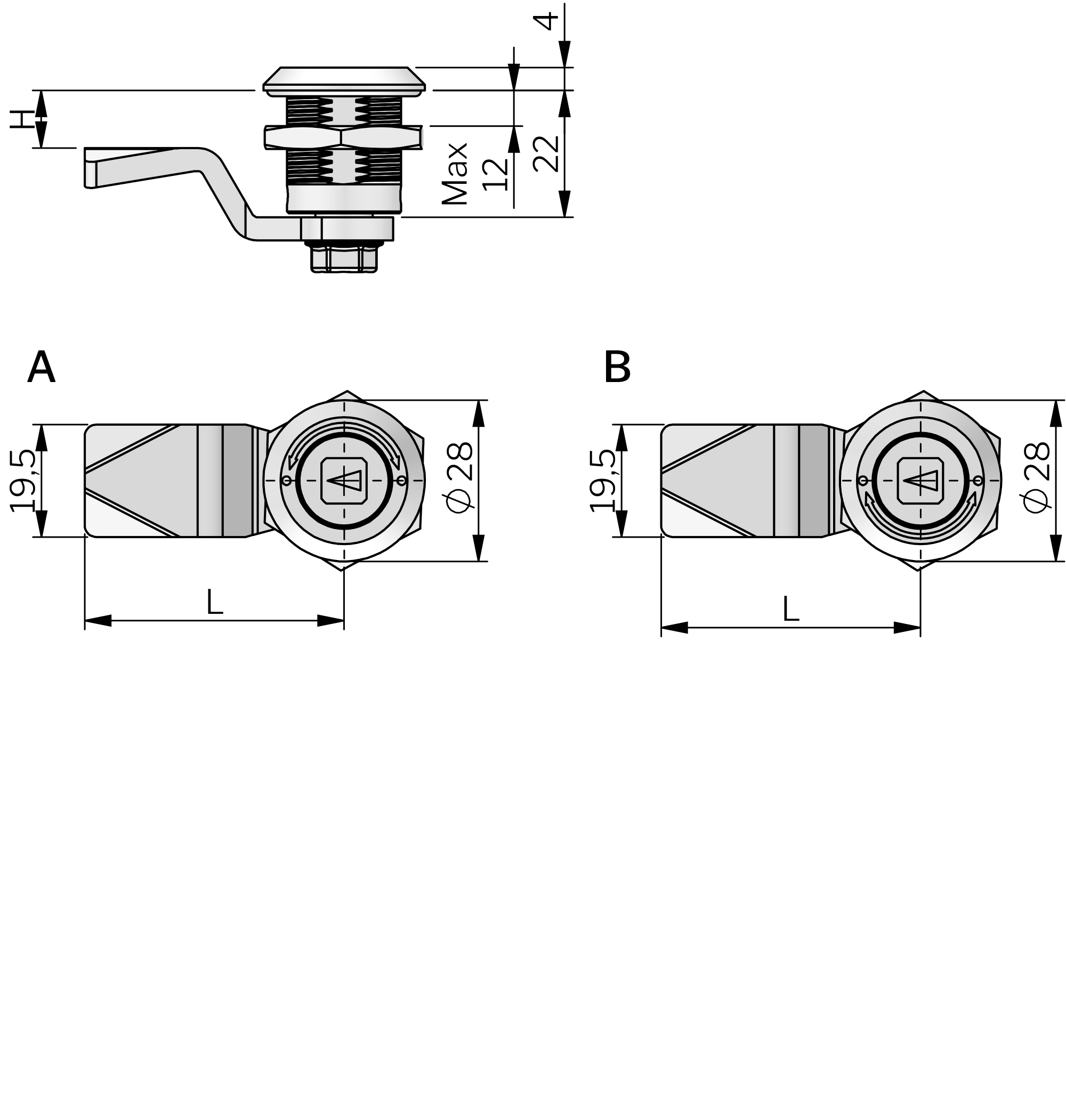

Compression Latch Stainless Steel 22 mm

Name: Compression Latch Stainless Steel 22 mm
Availability: OutOfStock

Index Code:

6-142

Quarter-turn compression latch. Available both with clockwise or counter clockwise action to open. Close and tighten with a single continuous half-turn motion. First 90° turn moves the cam 90°, the second 90° turn retracts the cam 6 mm. Protection degree IP66 and classed waterproof according to NEMA 4. The latch is supplied assembled and with screw with mechanical thread lock.

DownloadsMaterialTechnical Information

Download PDF	Product Data Sheet
Download PDF	Recommended Tightening Torque

Cam	Stainless steel 304
Housing	Stainless steel 316
Insert	Stainless steel 316
Nut	Stainless steel 304
Screw	Stainless steel 304

Cutout	COMBI
Standards	IP66 NEMA 4 DIN EN 61373

To download CAD-files, you need an Industrilas account. It only takes a minute.

A product number is created by combining the figures in each column (AABBCC-DEFF-HHLL)

AA	Description
24	Compression latch

BB	Material
90	SS 316

CC	Cam type
77	Fixed cam position

D	Opening rotation
2	Counter-clockwise
3	Clock-wise

E	Nut
0	Standard nut

FF	Insert
09	Square 8

HHLL	H/L in mm
0000	No cam
0845	8 / 45
1045	10 / 45
1245	12 / 45
1445	14 / 45
1645	16 / 45
1845	18 / 45
2045	20 / 45
2245	22 / 45
2445	24 / 45
2645	26 / 45
2845	28 / 45
3045	30 / 45
3245	32 / 45
3445	34 / 45
3645	36 / 45
3845	38 / 45
4045	40 / 45
4245	42 / 45
4445	44 / 45
4645	46 / 45
4845	48 / 45
5045	50 / 45
5245	52 / 45
5445	54 / 45
