Stainless steel

Single-Point Cams SS 304

Index Code: 2-481

Single-point cams for use with housings with internal limitation of rotation.

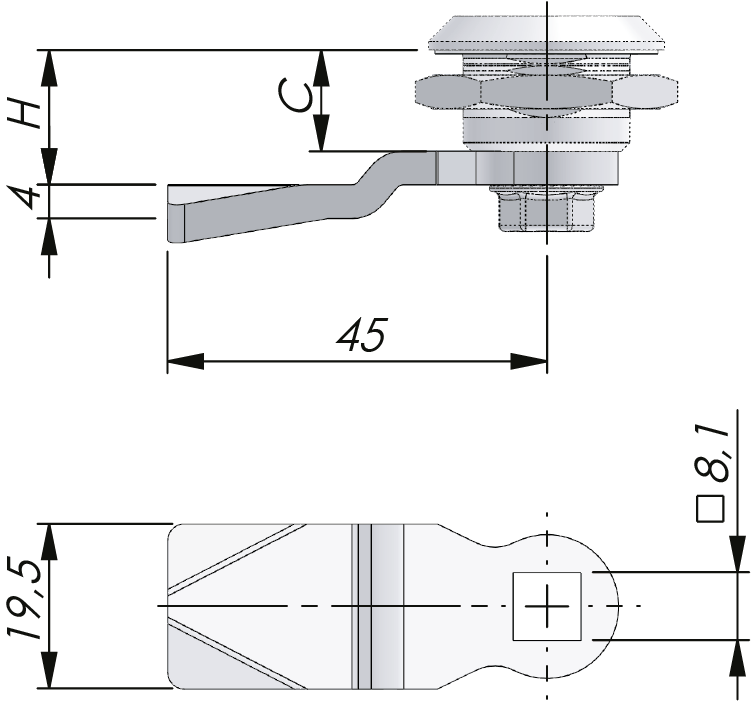

In the drawing, C = housing length, H = outside face to engagement point of cam.

Other lengths and versions available on request.

Download PDF
Product Data Sheet
Download PDF
Recommended Tightening Torque
Cam Stainless steel 304
Notes

H in mm when housing length C=12, 18, 30, 35, 45 or 56 mm.

Choose CAD format:
Download here:
To download CAD-files, you need an Industrilas account. It only takes a minute.
or Create Account

H in mm when housing length C=12, 18, 30, 35, 45 or 56 mm.
