Handle rotation 90° in both directionsOpening angle of hinges, applicable angle shown in numbers

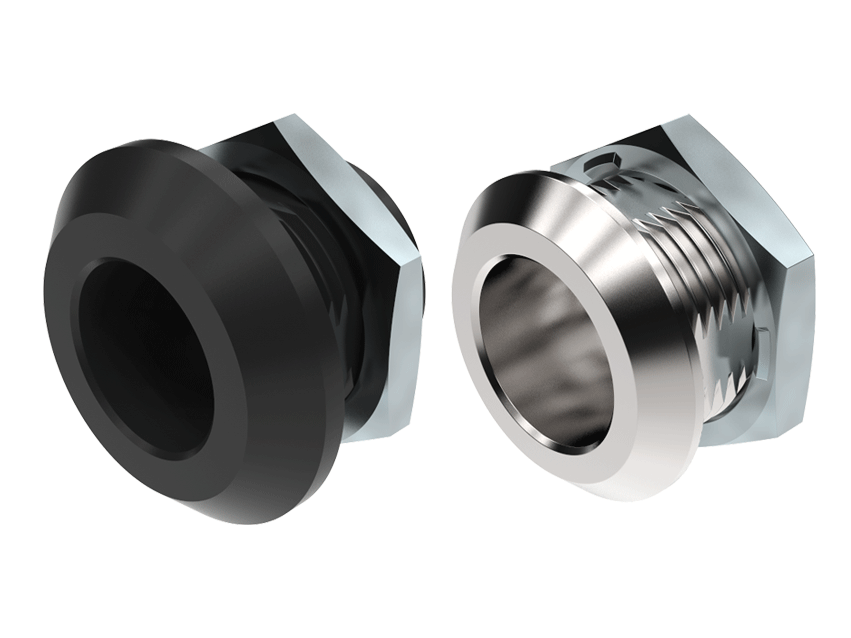

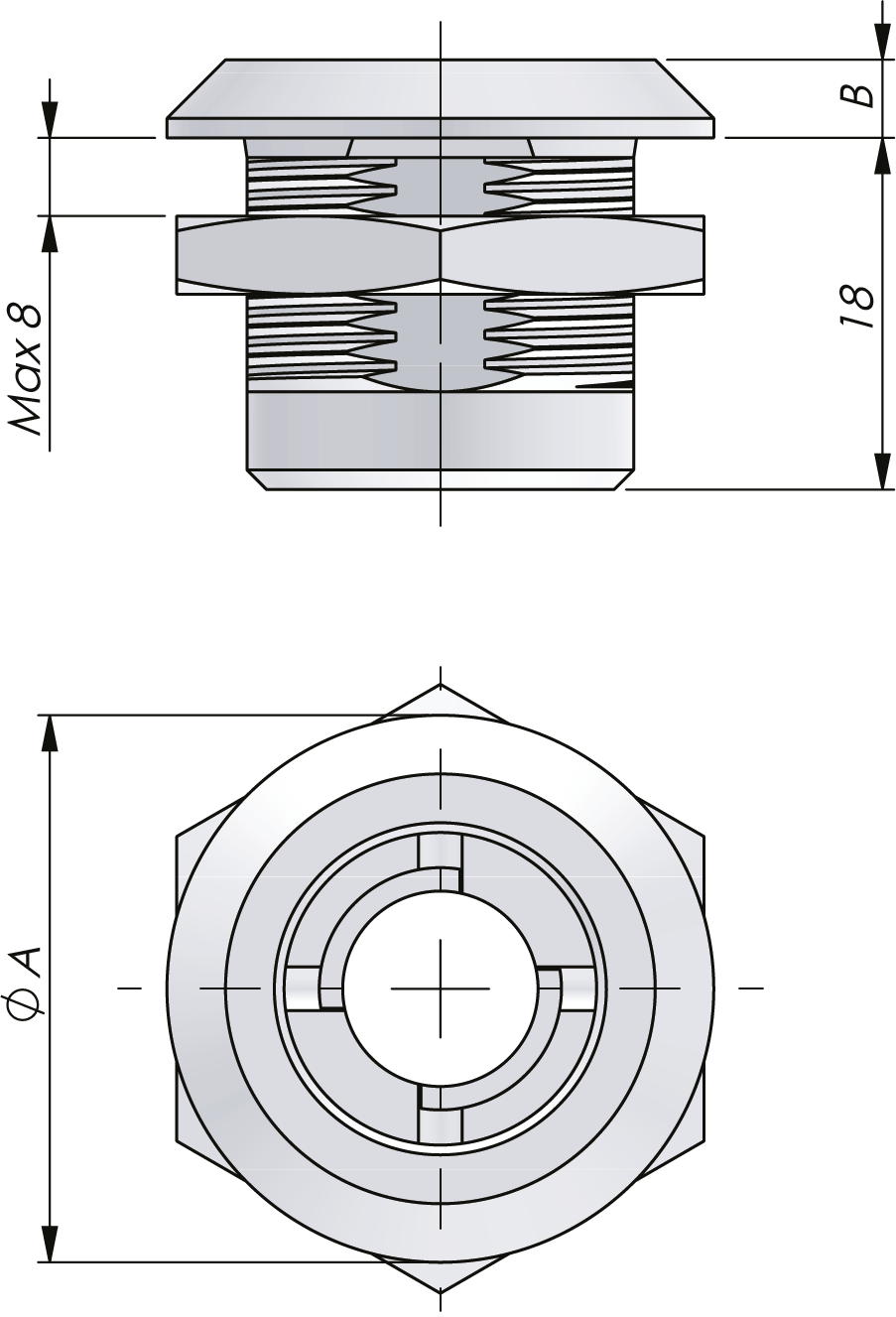

Housings Vibration Resistant 18 mm

Index Code:
2-021

Universal clockwise or counter-clockwise rotation when opening or closing. Supplied with nut. Earthing nut is recommended for all applications where electricity is connected.

Download PDF
Product Data Sheet
Download PDF
Recommended Tightening Torque
Download PDF
Industrilas cut out versions
HousingZinc die cast, chrome plated, black texture powder coated, zinc plated with black PA6 collar or glass fiber reinforced Polyamide PA6
Standard nutZinc die cast, zinc plated
Earthing nutZinc die cast, zinc plated
CutoutCOMBI
Choose CAD format here:

To download CAD-Files for this product
1. Select CAD-format
2. Click the green cube icon to generate CAD-Files
3. Wait until the download symbol is completed
4. Click the download symbol to download

Download here:
To download CAD-files, you need an Industrilas account. It only takes a minute.
or Create Account
