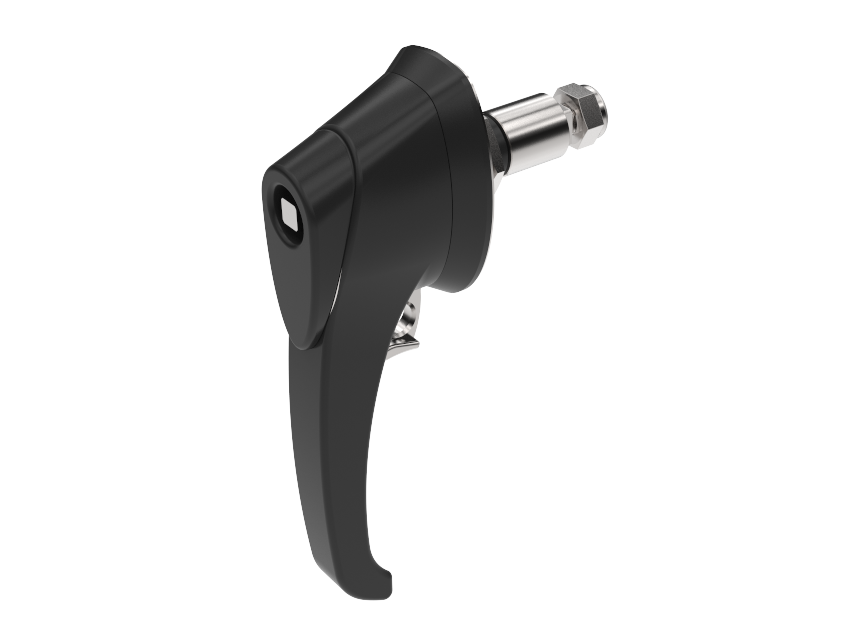

Defeater Handle Compact
Index Code:2-350
Padlockable defeater handle equipped with a built-in spring-loaded insert, providing a defeater function that is compliant with two-handed safety operations requirements. To operate the handle, turn the insert, push the padlock loop, and turn the handle.

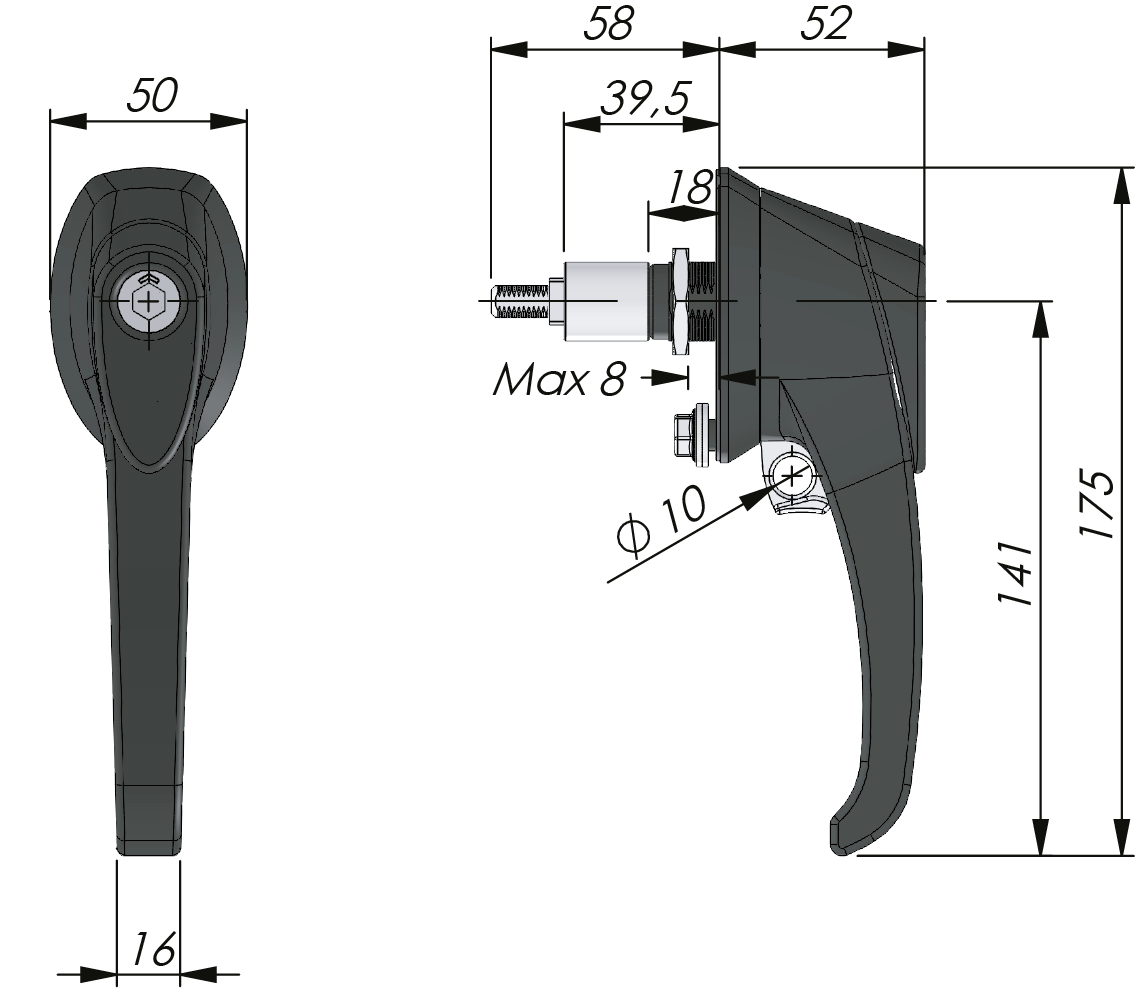

The cast-in threaded steel shaft allows simple cam adjustment. Removable stop for clockwise or counterclockwise operation. Supplied with nut, screws and gasket. Protection degree IP65 and waterproof according to NEMA 4.
| Download PDF | Product Data Sheet |
| Download PDF | Recommended Tightening Torque |
| Key extraction | Closed |
|---|---|

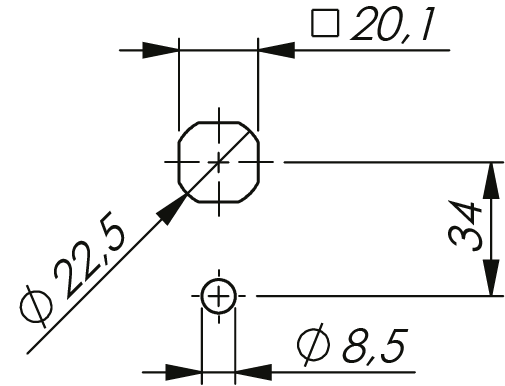

| Notes | Cams: 12 mm square cut-out, supplied on request. |
| Standards | IP65 NEMA 4 |
| Choose CAD format here:
To download CAD-Files for this product |
| Download here: |
To download CAD-files, you need an Industrilas account. It only takes a minute.
