Padlockable Wing Knob

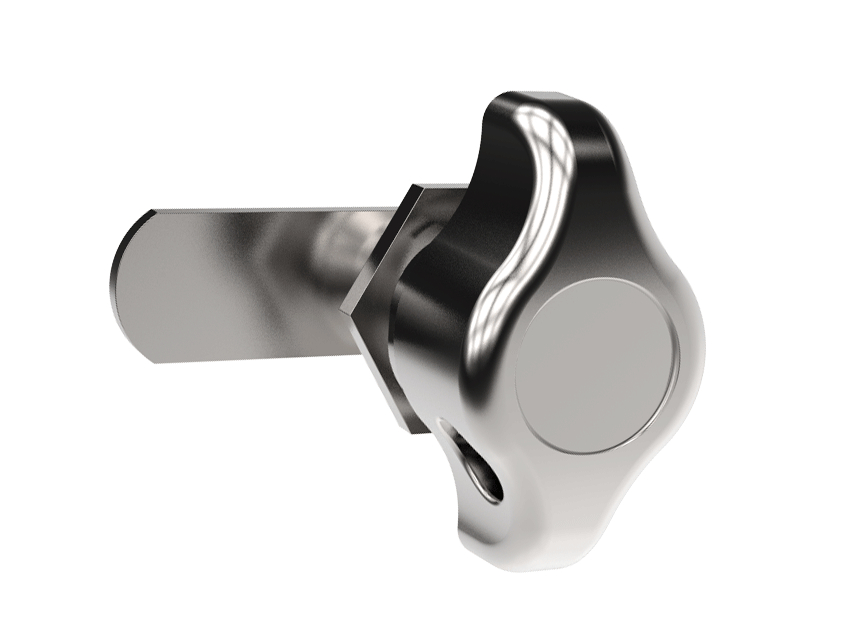

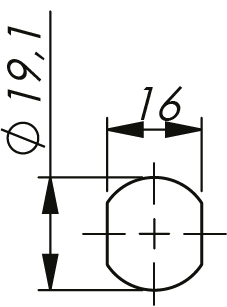

Padlockable wing knob with nut. The product number is individual for each specific application. Refer to lock type 22500, define the L- and H-measurement according to attached drawing, mounting context and requirements, for defining the unique product number.
| Download PDF | Recommended Tightening Torque |
| Housing | Zinc die cast, frosted chrome plated finish |
| Knob | Zinc die cast, frosted chrome plated finish |
| Notes | Other cams available. Contact us describing your application for further information. * = Straight cam. |
| Choose CAD format here: INFO_TEXT |
| Download here: |
3D CAD files are for reference only and are not a quality document. Errors may occur. Read full disclaimer
The 3D CAD models are provided as a design aid and for reference only. They are not a quality document and do not replace official product specifications, technical drawings or data sheets. Simplifications, inaccuracies or errors can occur, for example in dimensions, tolerances or details, and may also arise when files are converted between formats. Industrilås accepts no liability for errors in the CAD files or for any consequences of their use. Always verify critical dimensions against the current product documentation, or contact us if you are unsure.
| CAD* | P/N | Cam fixation | Door thickness (T) | Opening Rotation |
|---|---|---|---|---|
| 22500-05 | Screw | 0,5 - 10,0 mm | 90° clockwise | |
| 22500-06 | Screw | 0,5 - 10,0 mm | 90° counter clockwise |
