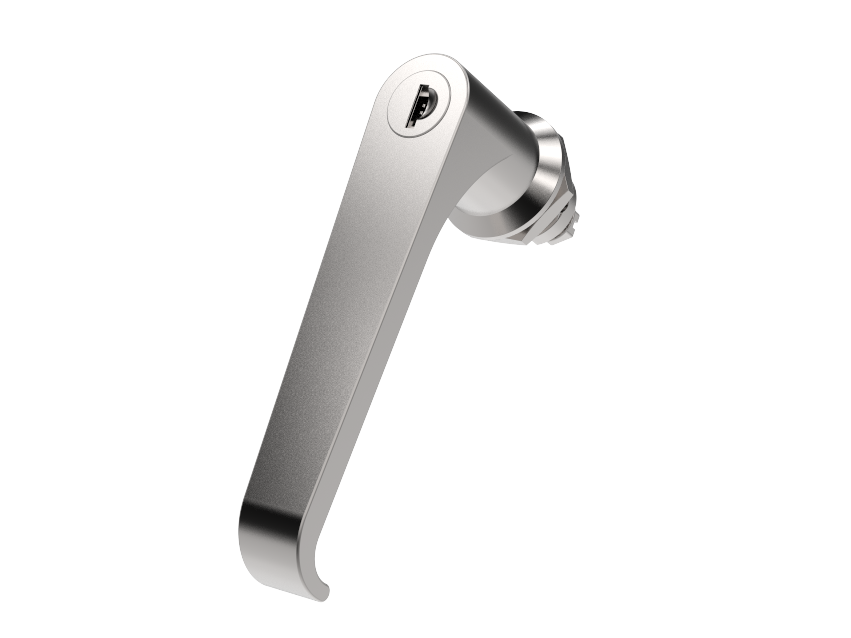

Quarter-turn L-handle Stainless Steel 18 mm
Index Code:6-161
Quarter-turn locking L-handle in acid-proof stainless steel 316. Universal clockwise or counter-clockwise rotation when opening or closing the handle. Supplied with nut.
| Download PDF | Product Data Sheet |
| Download PDF | Recommended Tightening Torque |
| Download PDF | Industrilas cut out versions |
| Cylinder | Zinc die cast, stainless steel 304 cap and dust shutter |
|---|---|
| Handle | Stainless steel 316 |
| Housing | Stainless steel 316 |
| Nut | Stainless steel 303 |
| Cutout | COMBI |
|---|---|
| Cylinder information | Supplied with two keys |
| Choose CAD format here:
To download CAD-Files for this product |
| Download here: |
To download CAD-files, you need an Industrilas account. It only takes a minute.
