Concealed Hinge 120°
Index Code:3-080

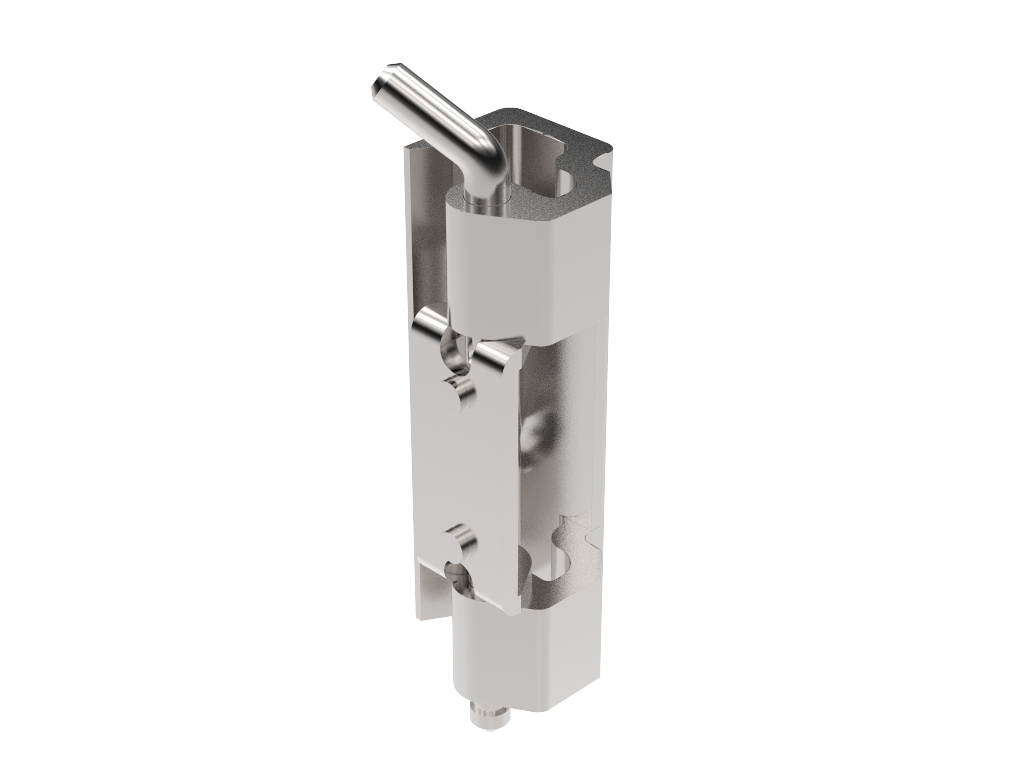

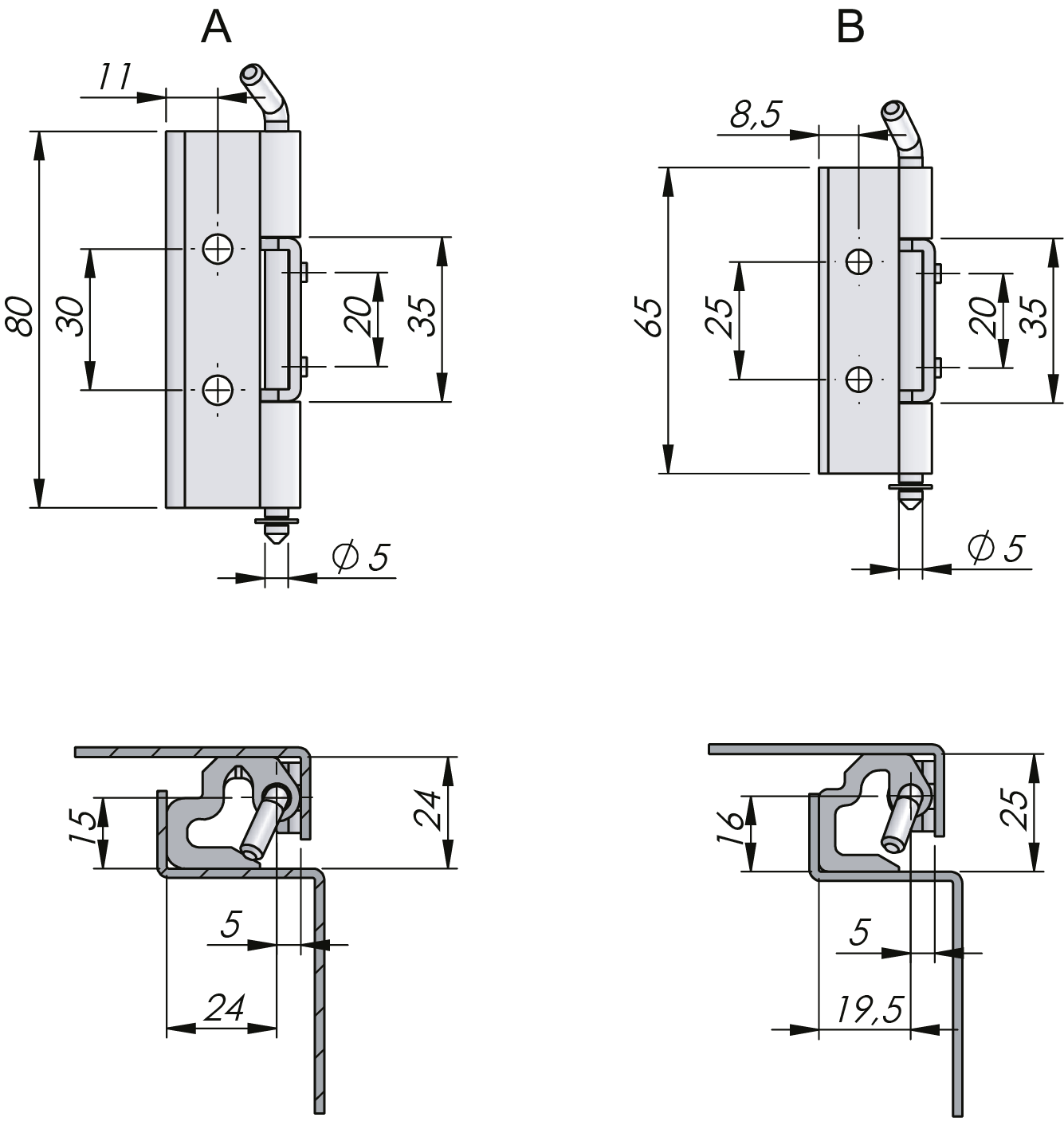

Concealed hinge for internal mounting. Comes in two different sizes, version A and B that is found in the drawing and table. Universal left and right mounting and with opening angle 120°. Frame part mounted with screws, door part provided with warts for press welding.
| Download PDF | Product Data Sheet |
| Download PDF | Recommended Tightening Torque |
| Door part | Stainless steel 304 |
|---|---|
| E-clip | Stainless steel 316 |
| Frame part | Zinc die cast, zinc plated |
| Pin | Stainless steel 304 |
| Notes | Supplied with E-clip. |
|---|
