6-134b |

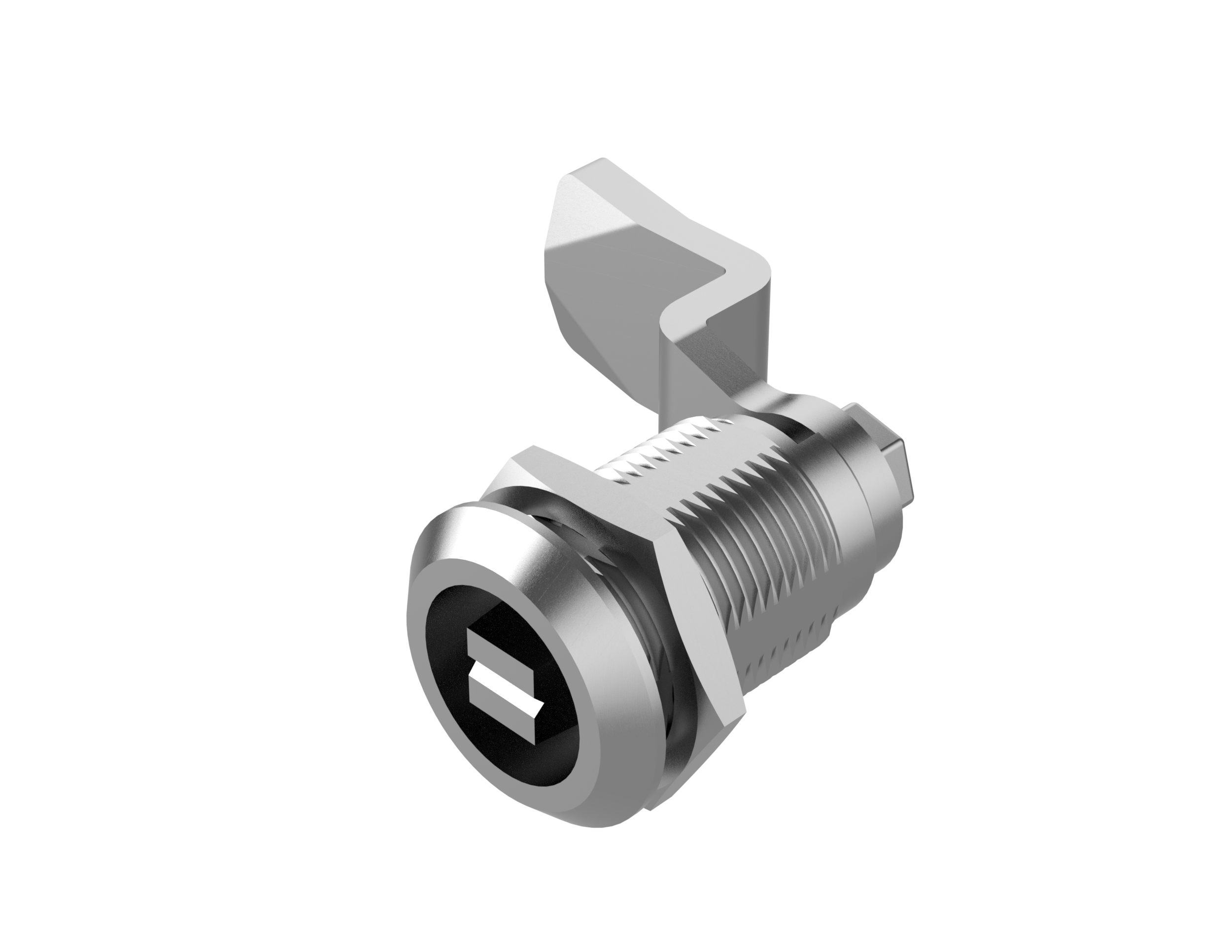

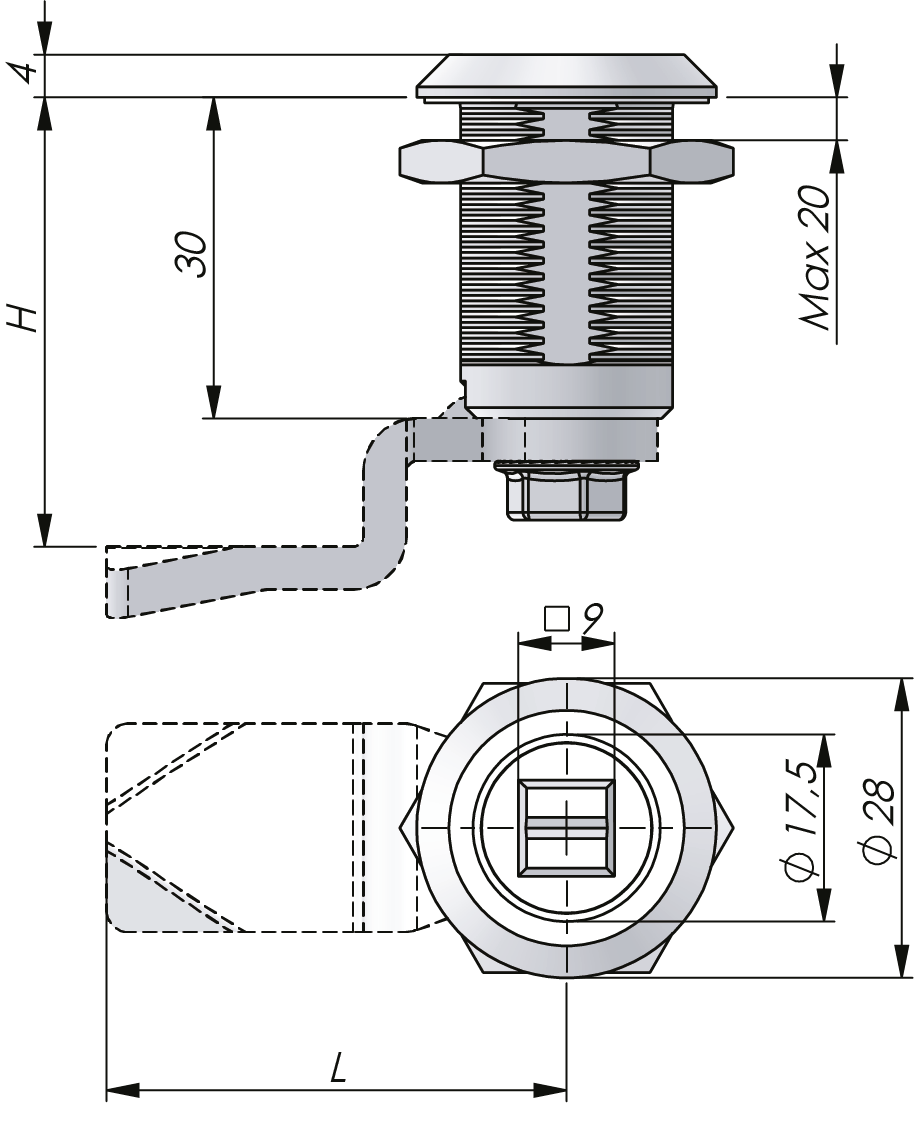

Quarter-turn Vibration Resistant Stainless Steel 30 mm
Index Code:6-134b
Vibration-resistant quarter-turn latch for use with railway applications with insert DB standard (train industry). The vibration-resistance prevents unintentional opening. Universal clockwise or counter-clockwise rotation when opening or closing the latch. Protection degree IP65, also classed as waterproof according to NEMA 4.
| Download PDF | Product Data Sheet |
| Download PDF | Industrilas cut out versions |
| Download PDF | Recommended Tightening Torque |
| Cam | Stainless steel 304 or 316 |
|---|---|
| Gaskets | NBR |
| Housing | Stainless steel 303 |
| Insert | Stainless steel 303 |
| Nut | Stainless steel 303 or 316 |
| O-ring | NBR |
| Notes | Latch is supplied with screw with mechanical thread lock. |
|---|---|
| Cutout | COMBI |
| Standards | IP65 DIN EN 61373 |
To download CAD-files, you need an Industrilas account. It only takes a minute.
A product number is created by combining the figures in each column (AAAA-BCCDEF-HHLL)
|
|
|
|
|
|
|
