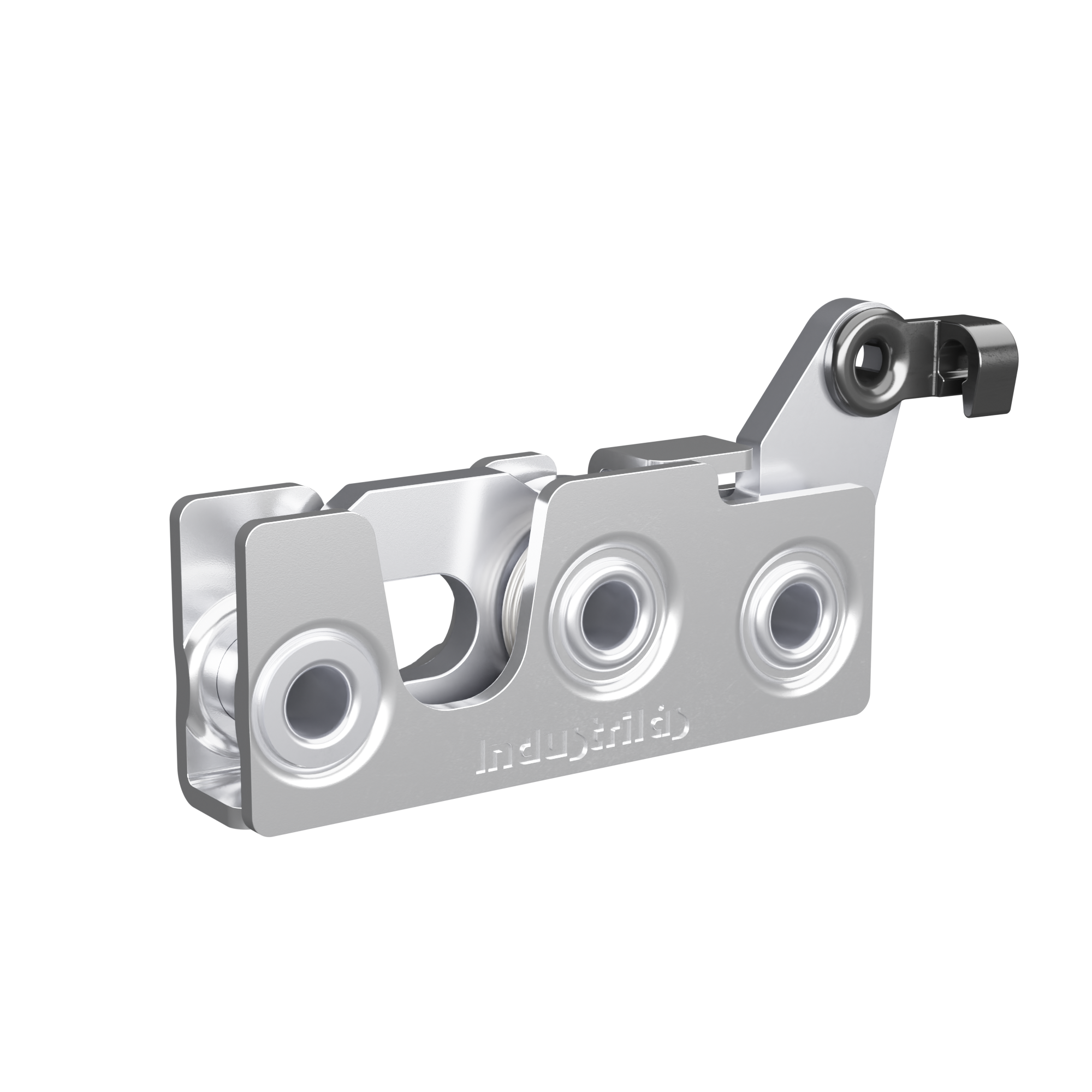

Vector Rotary Latch - Inline Top Pull

Index Code:
2-750-01

Vector rotary latches offer concealed latch points with convenient push-to-close action. Vector Rotaries are suitable for a variety of applications that require high strength, robust and secure latching. They are employed either as single latch point or in a multipoint latching system. Available in either single or two stage latching. The two stage rotary offers a safety feature that securely latches a partially latched compartment. Specially engineered to offer minimized trigger release force that ensures smooth and easy opening.

Vector rotaries are combined with Vector actuators that connect to the rotary latch by Vector rods or cables, creating an optimized latching system with components easily and securely fitted together. Please see related products to choose your components for your complete Vector rotary latching system.

The image displays a right version (see table below).

Download PDF
Product Data Sheet
Download PDF
Recommended Tightening Torque
Anti Vibration BushingTPE
BushingSteel, zinc plated
CamHardened steel, anti-friction coating
ClipGlass fibre reinforced polyamide (PA6GF30)
HousingSteel, zinc plated
StrikerSteel, zinc plated
TriggerHardened steel, zinc plated
To download CAD-files, you need an Industrilas account. It only takes a minute.
or Create Account
A product number is created by combining the figures in each column (AAAA-BBCDEFFG-HH)
AAAA Type
5223Rotary for 9,4 mm striker
5224Anti-BSR* Rotary for 9,4 mm striker
BB Material
11Steel, zinc plated
C Type
1Single stage
2Double stage
D Type of jaw
1Single jaw
E Mounting hole
0Through hole
1M6 threaded
2UNC 1/4-20
FF Trigger
01Inline Top Pull
G Left / Right
1Right
2Left
HH Striker
00No striker
01With striker bolt UNC 5/16-18
02With striker bolt M8
03With looped striker
04With riveted striker
* Anti-BSR means no Buzz, Squeak or Rattle due to TPE anti vibration bushing.
