Vector T1 Handle

Index Code:
2-810

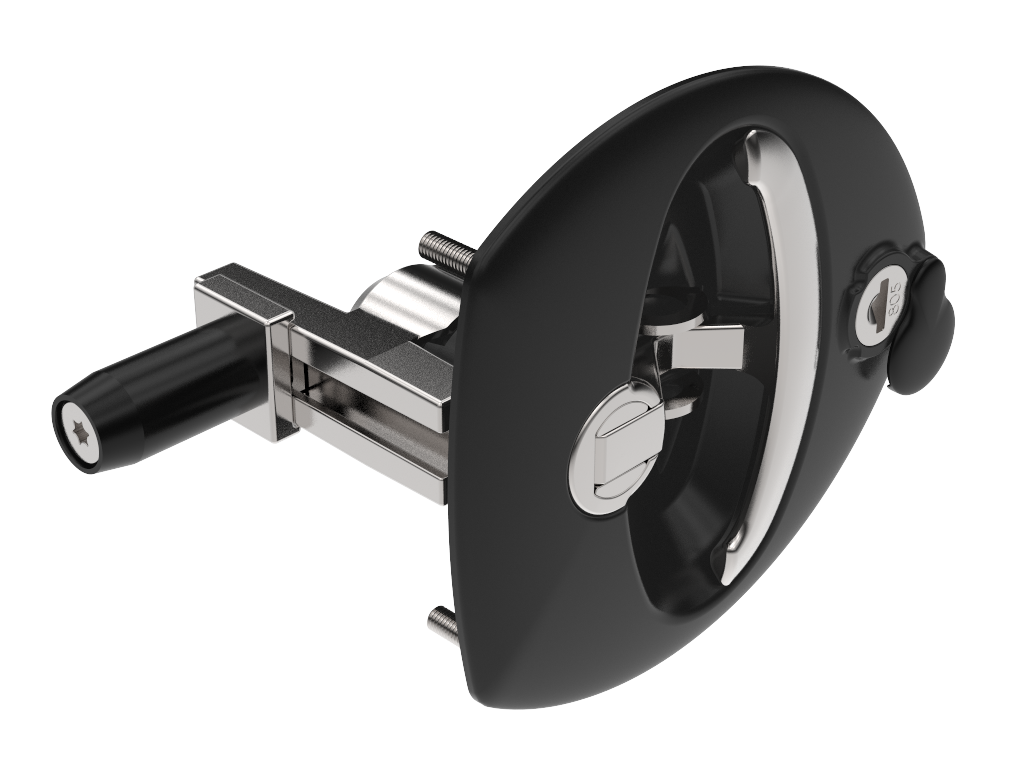

Flush T-handle with a 4 mm compression stroke, in zinc or stainless version. Bolts are moulded into the dish for mounting with nuts on the inside. The Vector T-handle features two independent locking systems: key-locking cylinder and retractable padlock loop (Ø 8 mm) which prevents the handle being lifted or turned. Handle rotation 90° right, 90° left or 180°. Five different cam versions available and the handle is supplied with cylinder dust-cover. Protection degree IP65.

On request the handle can be supplied with a separate, unassembled cylinder. This will simplify handling and enable smooth adaptation to different key combinations for various needs.

Download PDF
Product Data Sheet
Adjustable camZinc die cast, passivated
BodyGlass fibre reinforced polyamide (PA6GF30)
Cast-in boltsSteel, zinc plated
CylinderZinc die cast, stainless steel 304 cap and dust shutter
HandleZinc die cast, chrome plated, black texture powder coated or stainless steel 304, plain or black texture powder coated
Fixed camSteel, zinc plated
Padlock loopStainless steel 304
RollerGlass fibre reinforced polyamide (PA6GF30)
ShaftSteel, zinc plated or stainless steel 303
Key extractionOpen / Closed
Cylinder informationSupplied with two keys
Notes

Maximum tightening torque 2,2 Nm.

StandardsIP65
DIN EN 61373
To download CAD-files, you need an Industrilas account. It only takes a minute.
or Create Account
A product number is created by combining the figures in each column (AAAAAA-BBCDDDDD)
AAAAAA Handle / Shaft Handle
272063Zinc / SteelBlack
272363Zinc / SteelChrome
273063SS 304 / 303Black
273963SS 304 / 303Plain
BB Cylinder
06Keyed alike 751
52Keyed to differ
68Keyed alike 805
69Keyed alike 810
70Keyed alike 815
71Keyed alike 820
72Keyed alike 825
73Keyed alike 830
74Keyed alike 835
75Keyed alike 840
76Keyed alike 845
77Keyed alike 850
78Keyed alike 455
C Opening rotation
H90° clockwise
V90° counter-clockwise
-180°

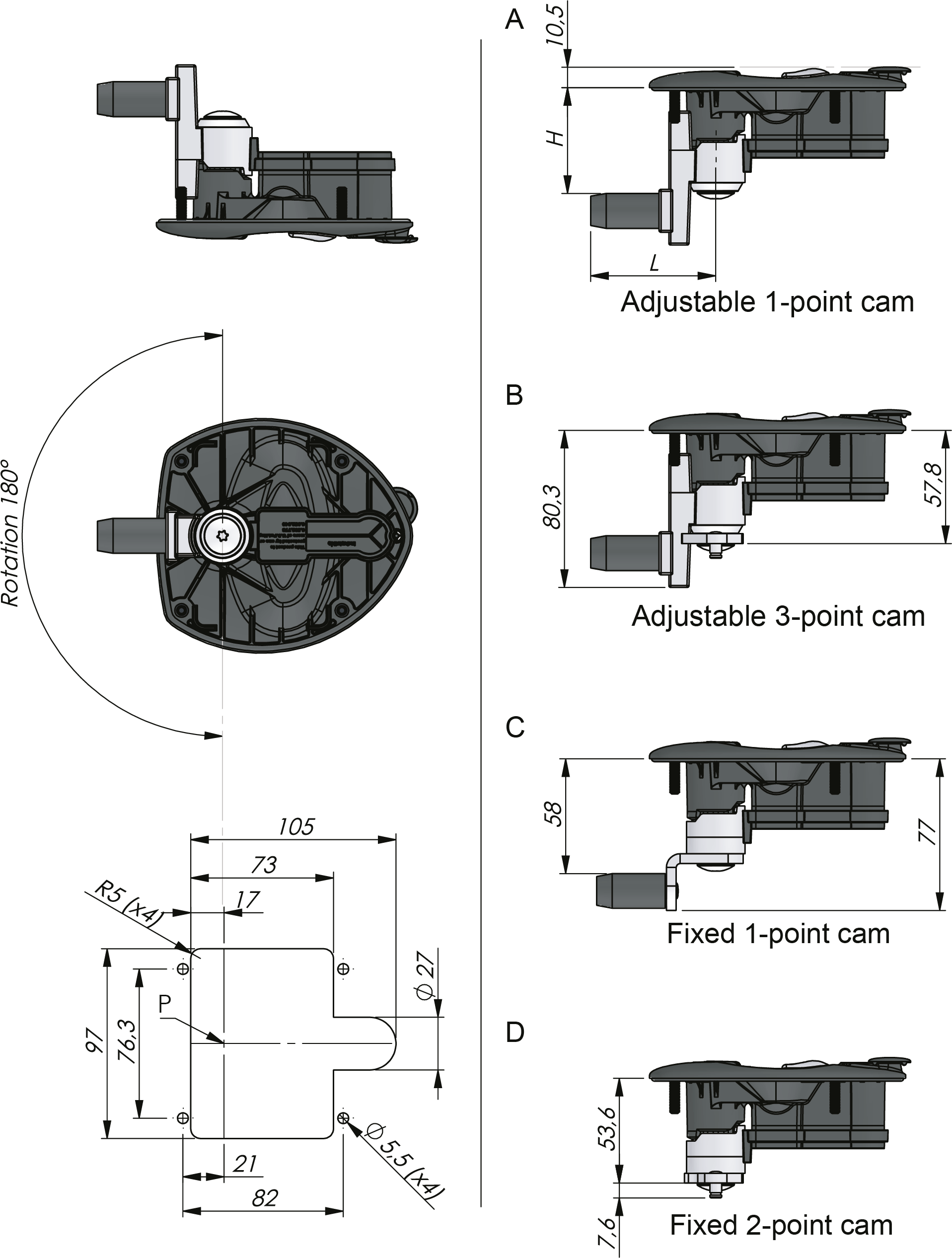

DDDDD Cam H= L= Drawing
