2-815 |
Vector T3 Handle

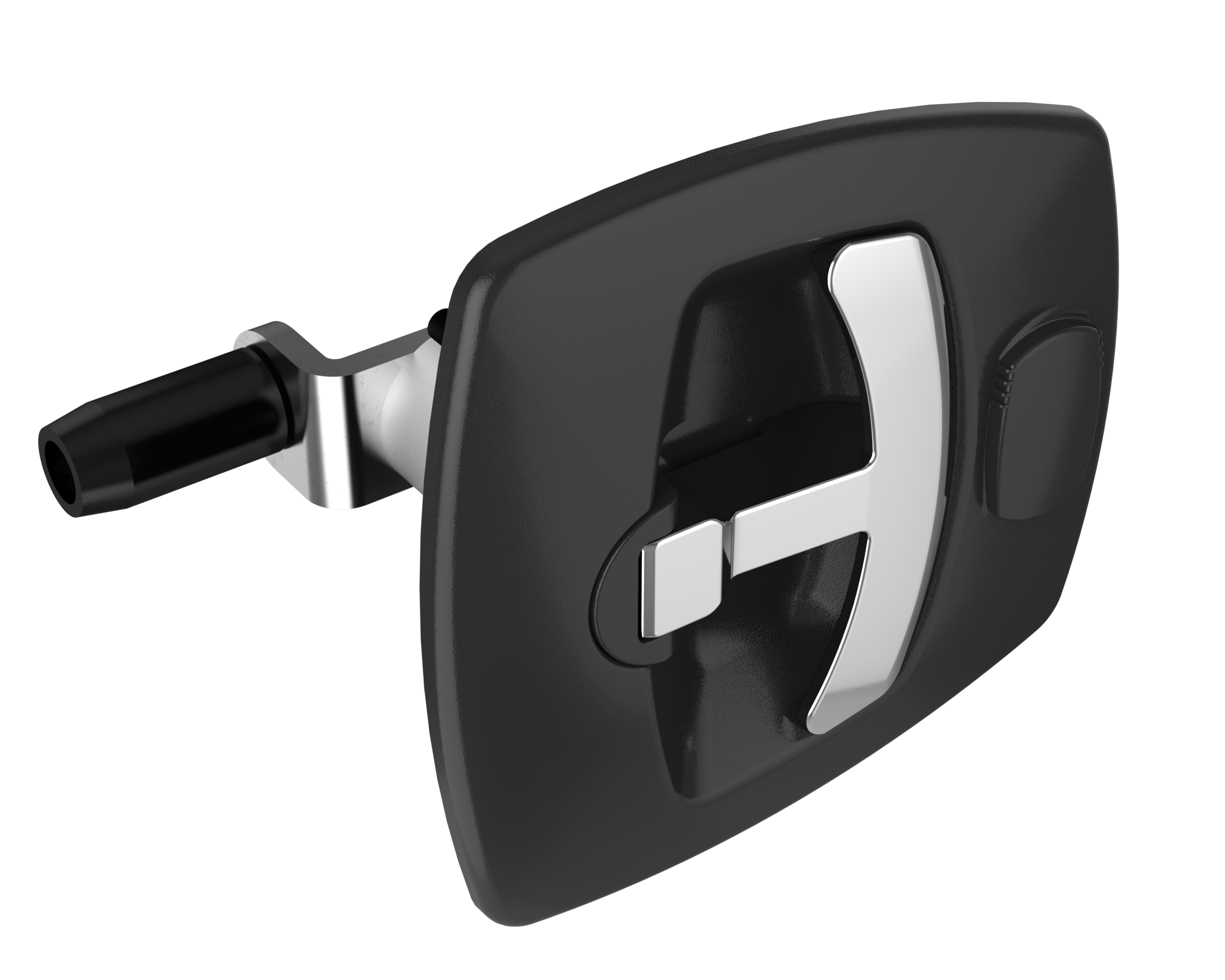

Index Code:Flush compression Vector 3 T-handle with 4 mm compression stroke. Sealed to IP65 against water and dust. Four blind-mount studs and PUR-gasket ensure waterproof assembly.
Available with fixed or adjustable roller cams, as well as 1-, 2- and 3-point latching options. Vector T3 comes in zinc or stainless steel. The zinc version offers a handle with the turning pivot shaft in zinc with a cast-in-steel shaft for excellent strength. The stainless steel version with T-handle and pivot shaft in bright polished stainless steel is recommended for applications used in tough environments. Available with or without the turnable dust cover.
| Download PDF | Product Data Sheet |
| Adjustable cam | Zinc die cast, passivated |
|---|---|
| Body | Glass fibre reinforced polyamide (PA6GF30) |
| Cast-in bolts | Steel, black passivated |
| Cylinder | Zinc die cast, stainless steel 304 cap and dust shutter |
| Dust cover, black | Glass fibre reinforced polyamide (PA6GF30) |
| Handle | Stainless steel 304, polished or zinc die cast, black texture powder coated |
| Roller | Glass fibre reinforced polyamide (PA6GF30) |
| Rotating locking device | Stainless steel 303 |
| Shaft | Stainless steel 303 |
| Notes | Maximum tightening torque 2,2 Nm. |
|---|
|
|
|
|
|
|
|
|
