6-120a |
![Handle rotation 90° in both directions Handle rotation 90° in both directions](/Files/Images/PIM/Symbols/insats.jpg)
![Opening angle of hinges, applicable angle shown in numbers Opening angle of hinges, applicable angle shown in numbers](/Files/Images/PIM/Symbols/ip65.jpg)
![Profile cylinder Profile cylinder](/Files/Images/PIM/Symbols/universal.jpg)

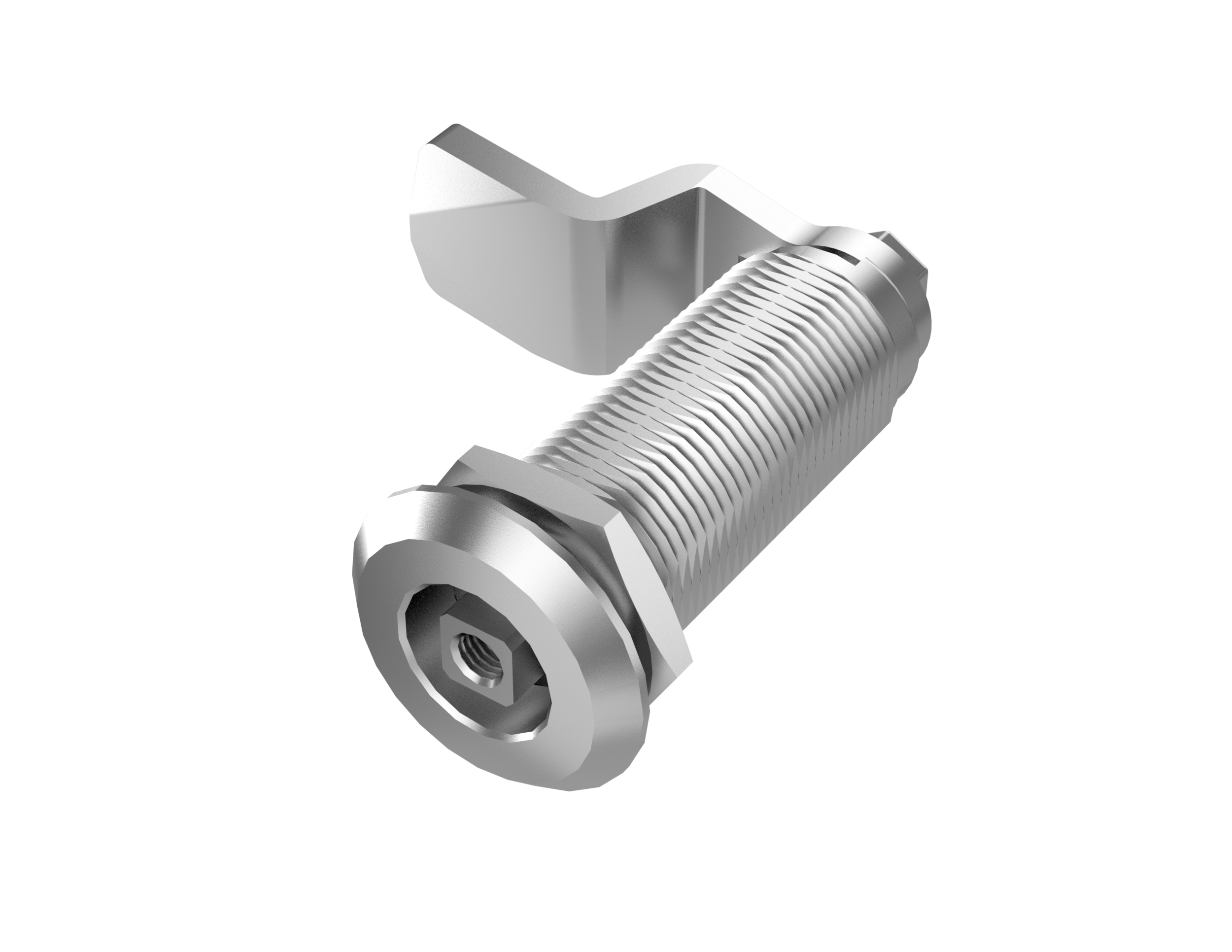

Quarter-turn Classic Stainless Steel 56 mm
Index Code:6-120
Protection degree IP65 is achieved by an O-ring on the insert and a pour-in-place foamed polyurethane gasket on the housing.
Download PDF | Product Data Sheet |
Download PDF | Recommended Tightening Torque |
Cam | Stainless steel 304 or 316 |
---|---|
Housing | Stainless steel 303 or 316 |
Insert | Stainless steel 303 or 316 |
Nut | Stainless steel 303 or 316 |
Notes | Protection degree IP65 is achieved by an O-ring on the insert and a flat gasket on the housing. |
---|---|
Cutout | COMBI |
To download CAD-files, you need an Industrilas account. It only takes a minute.
A product number is created by combining the figures in each column (AAAA-BCCDEF-HHLL)
|
|
|
|
|
|
|
