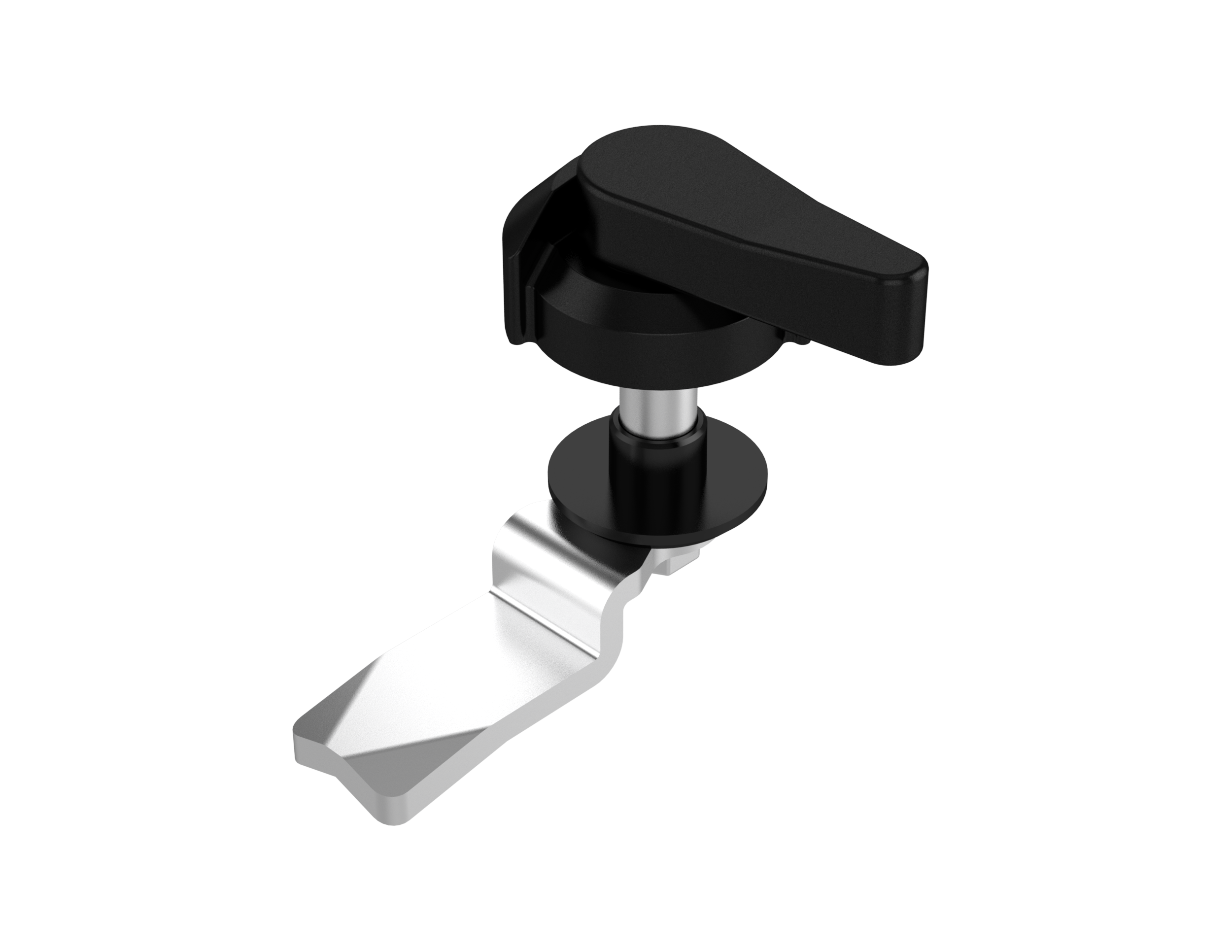

Quarter-turn Knob Latch
Index Code:2-318a

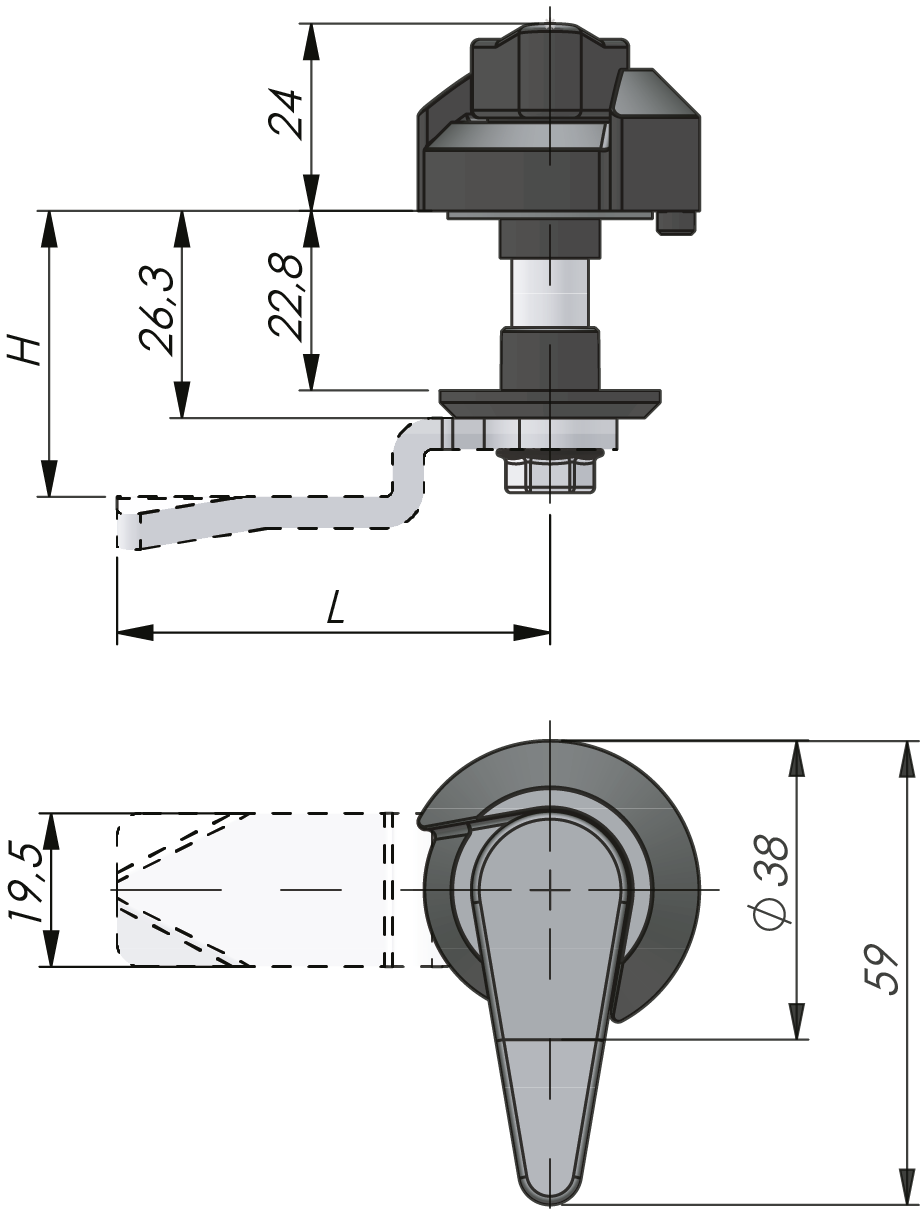

Latching unit with a compact, drop-shaped knob. Rotate the handle 90° to open or close. For door thickness 23-25 mm.
Non-stock item, price and delivery time upon request.
| Download PDF | Product Data Sheet |
| Download PDF | Recommended Tightening Torque |
| Housing | Glass fibre reinforced Polyamide (PA6GF30) |
|---|---|
| Knob | Glass fibre reinforced polyamide (PA6GF30) |
| Screw | Steel, zinc plated |
| Shaft | Zinc die cast, zinc plated |
| Washer | Glass fibre reinforced Polyamide (PA6GF30) |
