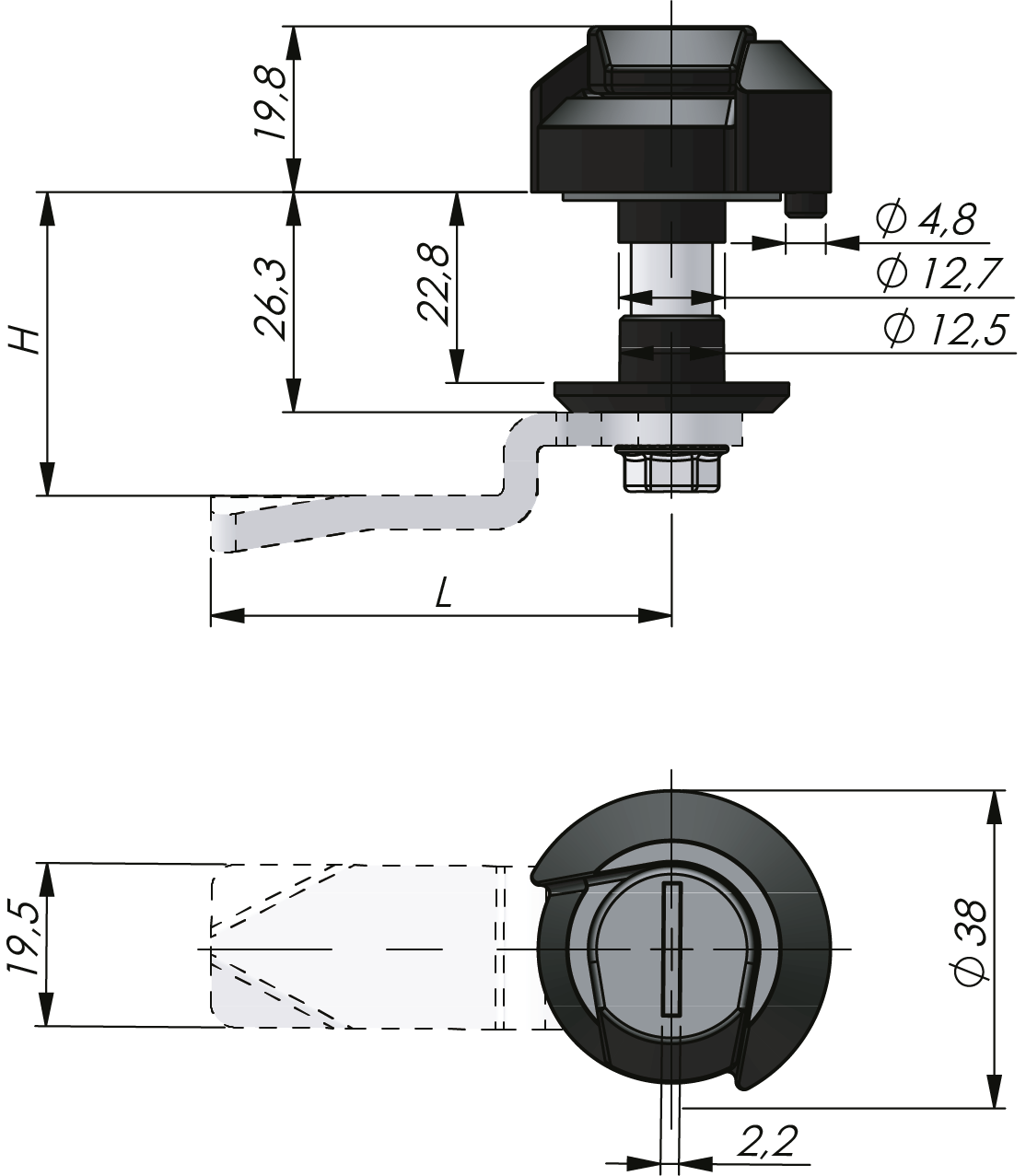

Quarter-turn Slotted Latch
Index Code:2-318b

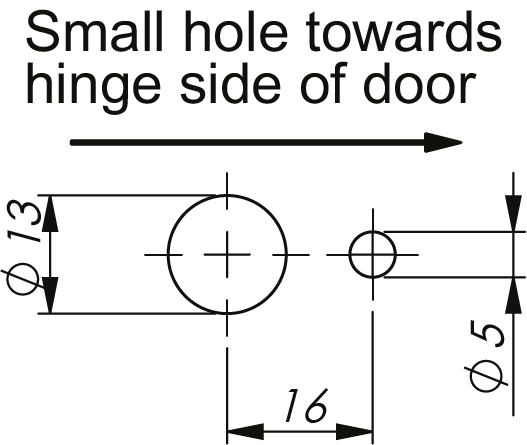

Latching unit with slotted insert and suitable for door thickness 23-25 mm. Rotation 90° to open or close.
Download PDF | Product Data Sheet |
Download PDF | Recommended Tightening Torque |
Housing | Glass fibre reinforced Polyamide (PA6GF30) |
---|---|
Insert | Glass fibre reinforced Polyamide (PA6GF30) |
Shaft | Zinc die cast, zinc plated |
Washer | Glass fibre reinforced Polyamide (PA6GF30) |
Choose CAD format here:
To download CAD-Files for this product |
Download here: |
To download CAD-files, you need an Industrilas account. It only takes a minute.
