Quarter-Turn Vibration Resistant 12 mm

Index Code:
2-040

You design this vibration resistant quarter-turn latch to accommodate your needs by combining your choices of housing, nut, insert, washer, screw and cam. The latch can be delivered un-assembled, pre-assembled with enclosed cam or fully assembled.

The latch clicks to open and closed positions with good tactile feedback.

Vibration resistant according to DIN EN 61373. Available with IP66 protection and waterproof according to NEMA 4.

Download PDF
Product Data Sheet
Download PDF
Recommended Tightening Torque
Download PDF
Industrilas cut out versions
Cam and screwSteel, zinc plated
Earthing nutZinc die cast, zinc plated
HousingZinc die cast, chrome plated, black texture powder coated or zinc plated with black PA6 collar
InsertZinc die cast, chrome plated or black texture powder coated
Standard nutZinc die cast, zinc plated
WasherStainless steel 304
CutoutCOMBI
Notes

To fulfill DIN EN 61373 the latch can be supplied with screw with mechanical thread lock, see column B (Nut) in table.

StandardsIP66
NEMA 4
DIN EN 61373
To download CAD-files, you need an Industrilas account. It only takes a minute.
or Create Account
A product number is created by combining the figures in each column (AAAA-BCCDEF-HHLL)
AAAA Housing
2402Zinc, chrome plated
2406Zinc, black coated
2430Zinc, PA6 collar
B Nut
0SN
1EN
2SN+TUF
4EN+TUF
CC Insert
01Square 6
03Square 7
05Square 8
07Square 8 / slotted
08Square 8 / M6
11Square 8 / recessed
14Triangle 7
15Triangle 8
16Triangle 10
17Triangle 10 / M5
18Triangle 10 / M6
19Triangle 10 / SEN
21Triangle 10 - radius ES3
22Double Bit 3
24Double Bit 5
26Slotted
28Slotted with arrow
29Slotted recessed
31Hexagon 8,5
32Hexagon 11
34Recessed hexagon 8
35Recessed hexagon 10
36Recessed hex 8 / 3 mm pin
37Solid plug
39Triangle 10 - radius
D Surface - insert
2Chrome
6Black
E Assembly
0IP54 - not assembled
1IP66 - not assembled
2IP54 - enclosed cam
3IP66 - enclosed cam
4IP54 - assembled
5IP66 - assembled
F Cam
0Steel

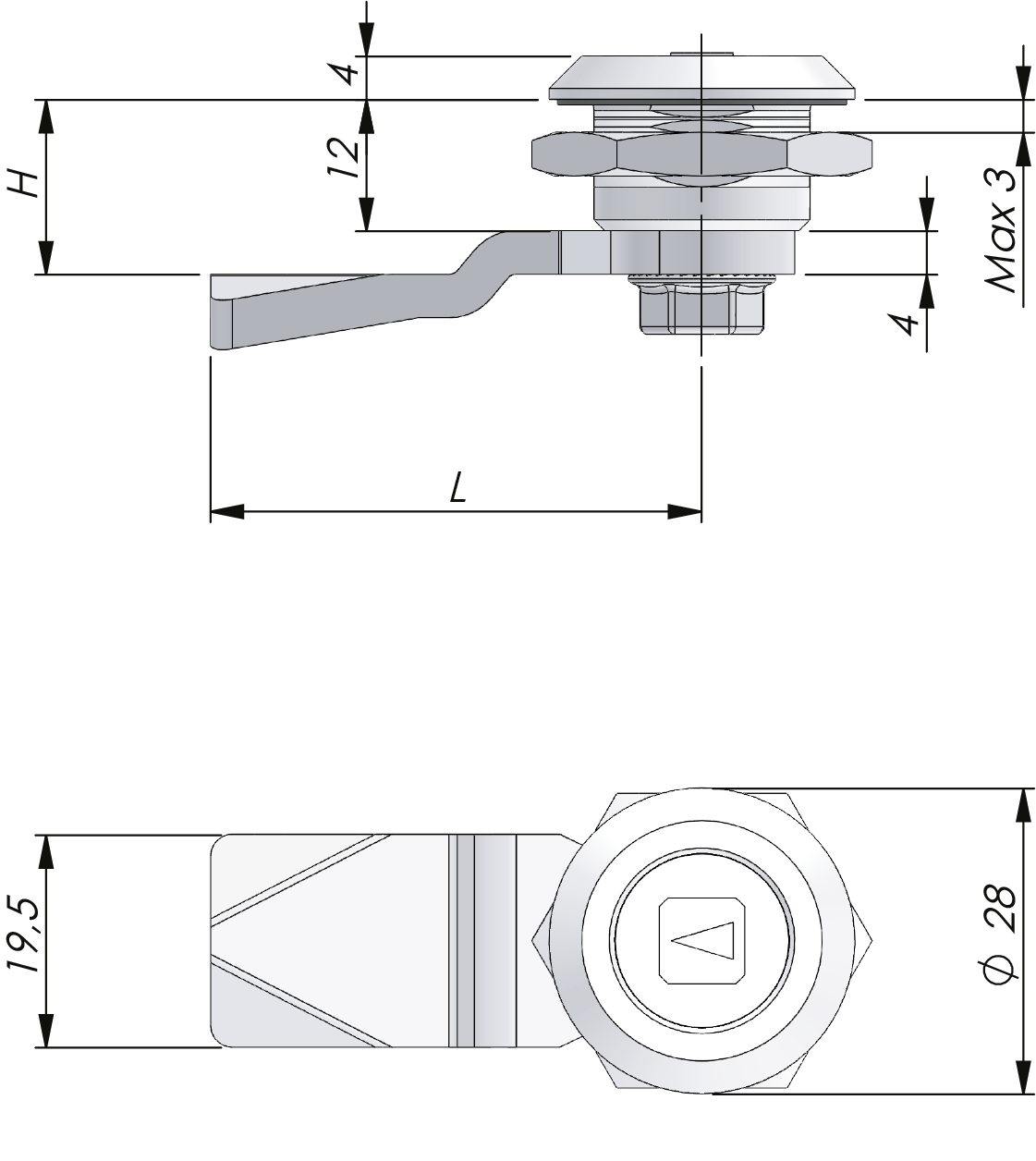

HHLL H/L in mm
0000No cam
024502 / 45
04454 / 45
06456 / 45
08458 / 45
104510 / 45
124512 / 45
144514 / 45
164516 / 45
184518 / 45
204520 / 45
224522 / 45
244524 / 45
264526 / 45
284528 / 45
304530 / 45
324532 / 45
344534 / 45
364536 / 45
384538 / 45
404540 / 45
424542 / 45
444544 / 45

SN = Standard nut. EN = Earthing nut.
TUF = Assembled with TUF-loc screw to achieve DIN EN 61373.

Can be supplied un-assembled, pre-assembled with enclosed cam or completely assembled.
