2-825 |

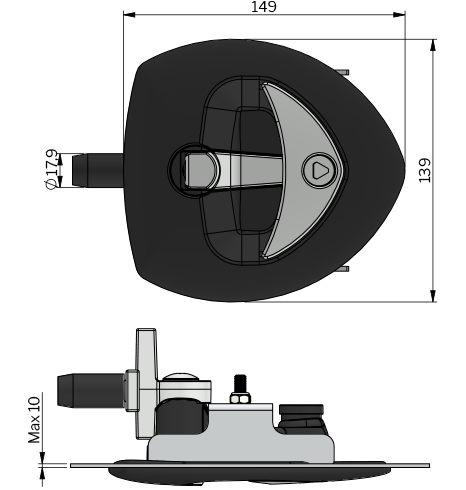

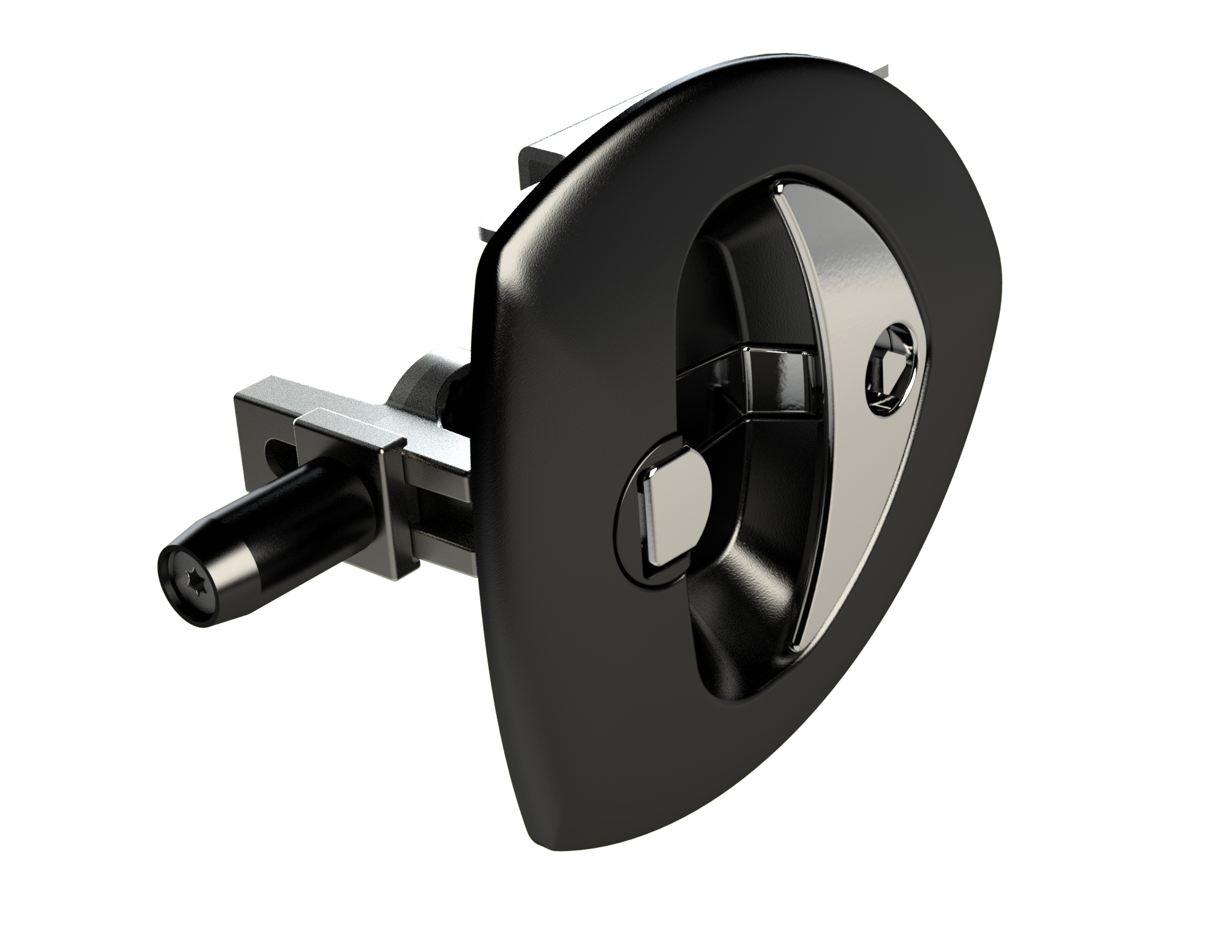

Vector T2 Defeater Handle
Index Code:2-825
The heavy-duty Vector T2 Defeater handle is designed with a spring-loaded tool operated insert to prevent accidental opening. Only while the spring-loaded insert is turned and hold in the unlocked position the handle can be opened.
The handle can be turned 180° left and right and provide 4 mm compression. You can use fixed or adjustable cams and choose between one-point, two-point and three-point cams.
Installation is swift with a mounting bracket. Dust and water protected according to IP65.
| Download PDF | Product Data Sheet |
| Adjustable cam | Zinc die cast, passivated |
|---|---|
| Assembly hardware | Steel, zinc plated |
| Body | Glass fibre reinforced polyamide (PA6GF30) |
| Cast-in bolts | Steel, zinc plated |
| Fixed cam | Steel, zinc plated |
| Handle | Zinc die cast, chrome plated or black texture powder coated |
| Insert | Zinc die cast, chrome plated or black texture powder coated |
| Mounting bracket | Steel, zinc plated |
| Nut | Steel, zinc plated |
| Roller | Glass fibre reinforced polyamide (PA6GF30) |
| Notes | The tightening torque of the two nuts for the bracket is 3 Nm. |
|---|---|
| Standards | IP65 DIN EN 61373 |
To download CAD-files, you need an Industrilas account. It only takes a minute.
A product number is created by combining the figures in each column (AAAA-BBBCC-DDDDD)
|
|
|
|
