Vision Swing Handle for padlock

Name: Vision Swing Handle for padlock
Availability: OutOfStock

Index Code:

1-020

Vision swing handle equiped with pad-lock loop. This swing handle is for cam and round rod systems.

DownloadsMaterialTechnical Information

Download PDF	Product Data Sheet
Download PDF	Recommended Tightening Torque

Bolt	Steel, zinc plated
Dish	Glass fibre reinforced polyamide (PA6GF30)
Handle	Glass fibre reinforced polyamide (PA6GF30)
Nut	Brass, zinc plated
Padlock loop	Steel, zinc plated
Screw	Steel, zinc plated
Shaft	Brass, zinc plated
Washer	Steel, zinc plated

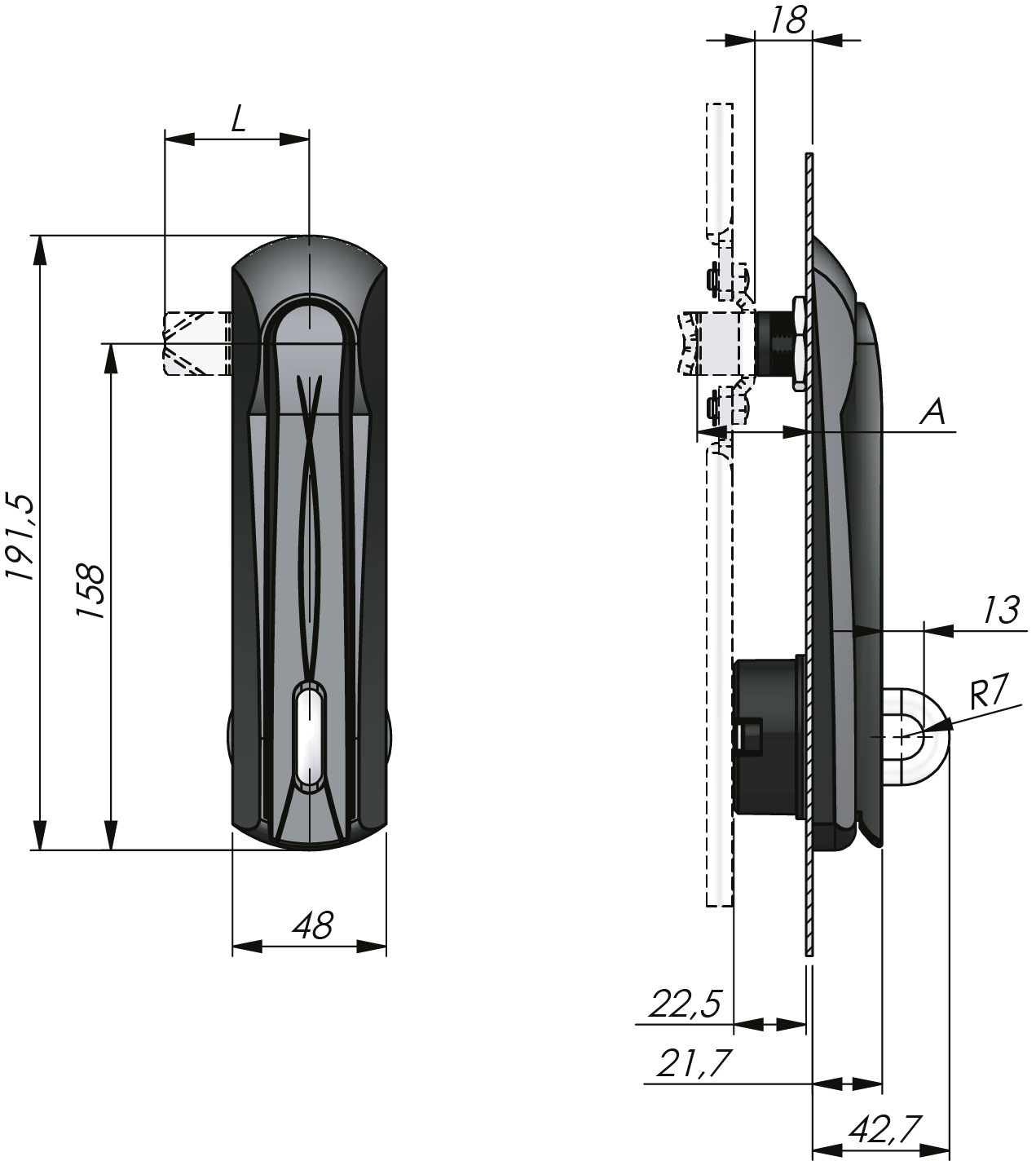

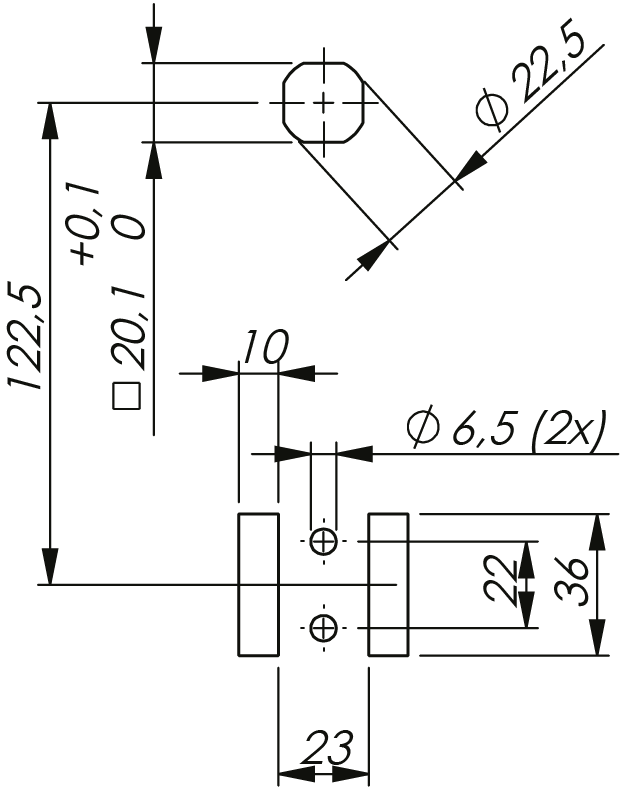

Notes	A and L on the drawing refer to measurements on cams (Product ID 1-008.50).
Standards	IP65
