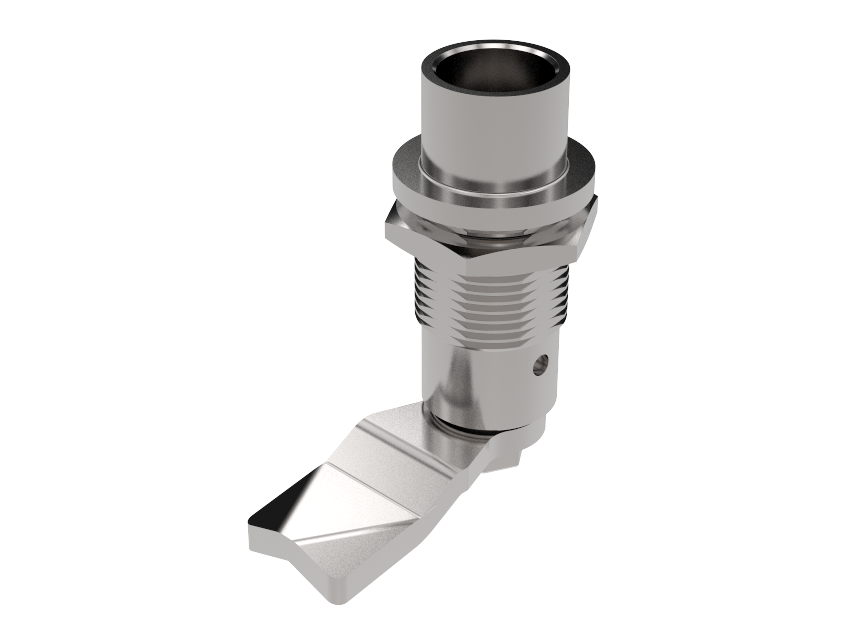

Compression Latch Stainless Steel 35 mm
Index Code:6-140
Quarter-turn compression latch with an extended collar making the latch suitable for thick panels. Close and tighten with a single continous half-turn motion. First 90° turn moves the cam 90°, the second 90° turn retracts the cam 6 mm. Protection degree IP65, also classed waterproof according to NEMA 4. The latch is supplied assembled and cam is to be ordered separately.
Non-stock item, price and delivery time upon request.
| Download PDF | Product Data Sheet |
| Download PDF | Recommended Tightening Torque |
| Housing | Stainless steel 304 |
|---|---|
| Insert | Stainless steel 303 |
| Nut | Stainless steel 303 |
| Standards | DIN EN 61373 |
|---|
