QUARTER-TURN VIBRATION RESISTANT STAINLESS STEEL 18 MM

QUARTER-TURN VIBRATION RESISTANT STAINLESS STEEL 18 MM

Index Code:

6-116

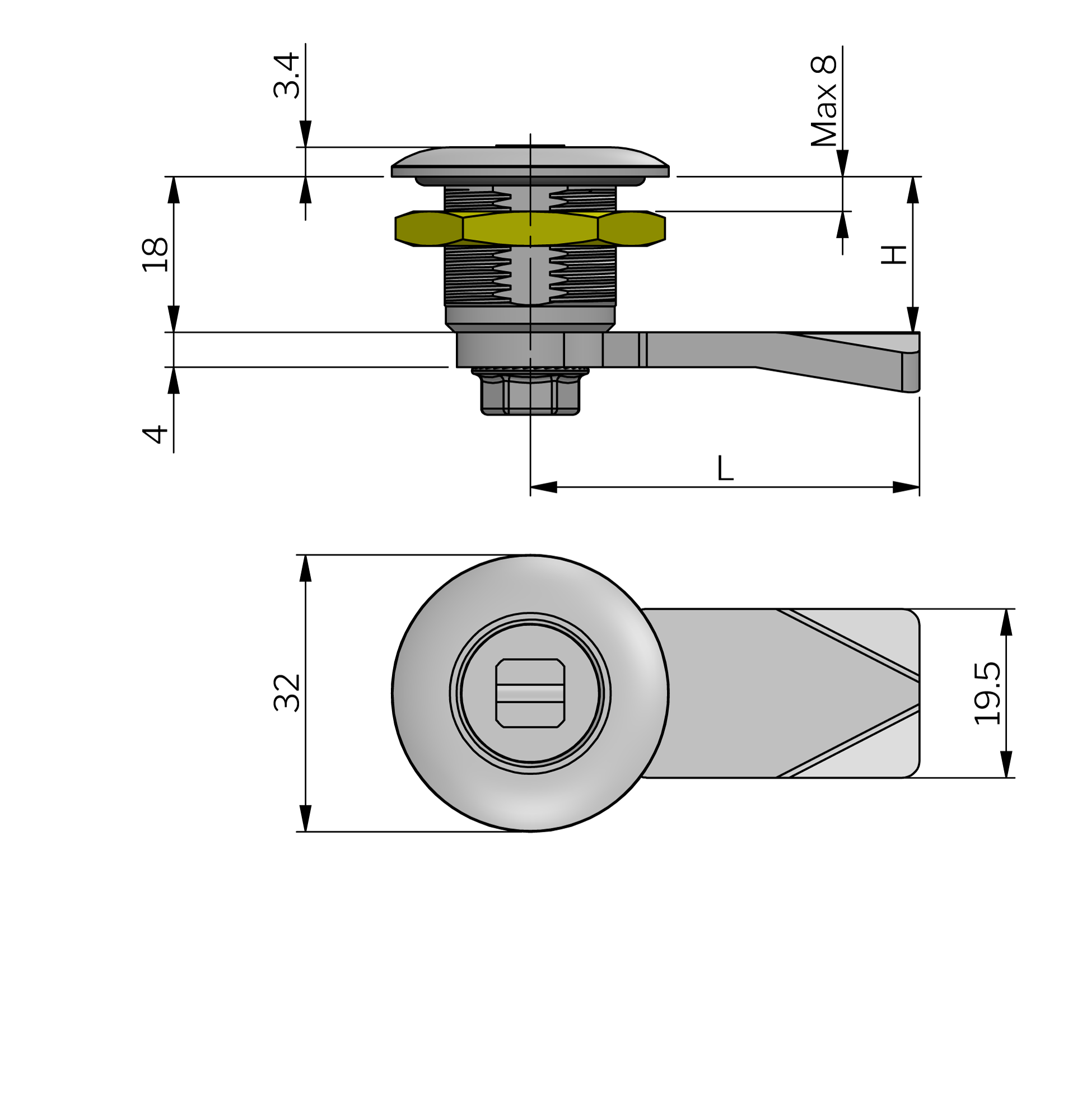

This flush mounted vibration resistant quarter-turn latch consists of acid-proof AISI 316 components. You design the latch to accommodate your needs by combining your choices of nut, insert and cam. The latch can be delivered un-assembled, pre-assembled with enclosed cam or fully assembled.

Protection degree IP65 is achieved by using an O-ring on the insert and a PUR-gasket on the housing.

DownloadsMaterialVideos

Download PDF	Product Data Sheet
Download PDF	Recommended Tightening Torque

Housing	Stainless steel 316
Insert	Stainless steel 316
Cam	Stainless steel 304 or 316
Nut	Stainless steel 303 or 316
Screw	Stainless steel 304
Washer	Stainless steel 304

To download CAD-files, you need an Industrilas account. It only takes a minute.

A product number is created by combining the figures in each column (AAAA-BCCDEF-HHLL)

AAAA	Housing
2429	Stainless steel 316

B	Nut
3	SS 303
9	SS 316

CC	Insert
01	Square 6
03	Square 7
05	Square 8
08	Square 8 / M6
13	Triangle 6,5
14	Triangle 7
15	Triangle 8
16	Triangle 10
17	Triangle 10 / M5
22	Double Bit 3
24	Double Bit 5
26	Slotted

D	Material insert and housing
9	SS 316

E	Assembly
7	PUR - enclosed cam
8	PUR - assembled

F	Cam
3	SS 304
9	SS 316

HHLL	H/L in mm
0000	No cam
0445	4 / 45
0645	6 / 45
0845	8 / 45
1045	10 / 45
1245	12 / 45
1445	14 / 45
1645	16 / 45
1845	18 / 45
2045	20 / 45
2245	22 / 45
2445	24 / 45
2645	26 / 45
2845	28 / 45
3045	30 / 45
3245	32 / 45
3445	34 / 45
3645	36 / 45
3845	38 / 45
4045	40 / 45
4245	42 / 45
4445	44 / 45
4645	46 / 45
4845	48 / 45
5045	50 / 45
