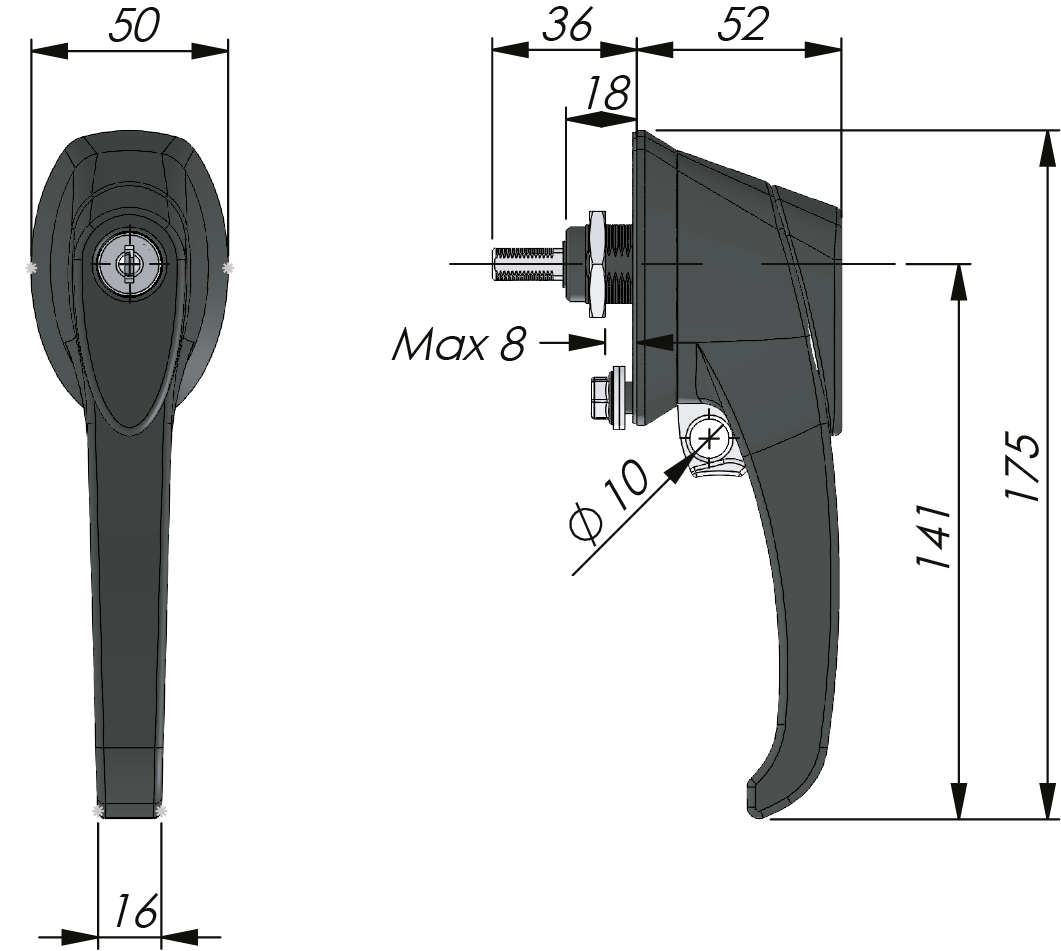

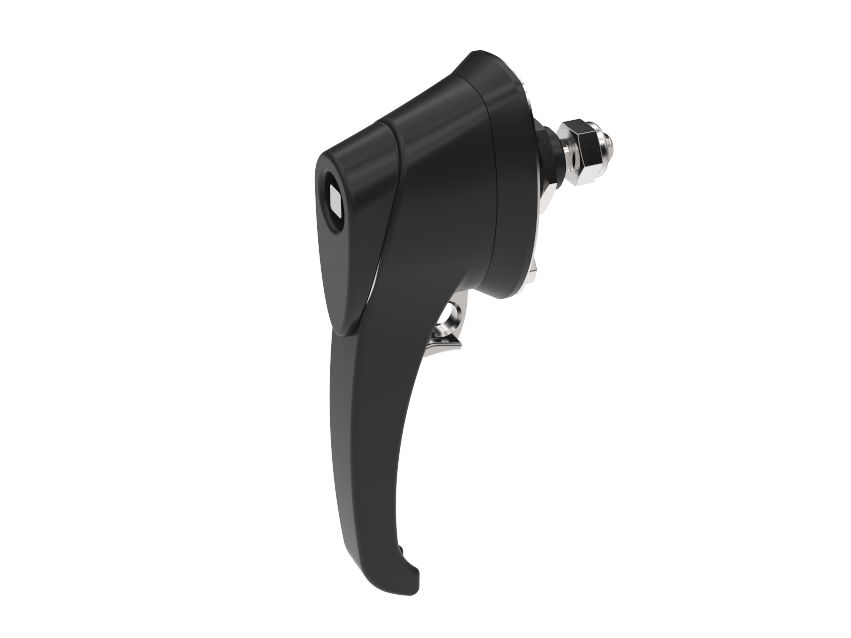

Defeater Handle Compact
Index Code:Padlockable defeater handle equipped with a built-in spring-loaded insert, providing a defeater function that is compliant with two-handed safety operations requirements. To operate the handle, turn the insert, push the padlock loop, and turn the handle.
The cast-in threaded steel shaft allows simple cam adjustment. Removable stop for clockwise or counterclockwise operation. Supplied with nut, screws and gasket. Protection degree IP65 and waterproof according to NEMA 4.
| Download PDF | Product Data Sheet |
| Download PDF | Recommended Tightening Torque |
| Cast-in shaft | Hardened steel, zinc plated |
|---|---|
| Handle | Zinc die cast, black texture powder coated |
| Insert | Zinc die cast, chrome plated |
| Nut | Zinc die cast, zinc plated |
| Gaskets | TPE and NBR |
| Padlock loop | Zinc die cast, chrome plated |
| Screw | Steel, zinc plated |
| Key extraction | Closed |
|---|---|
| Standards | IP65 NEMA 4 |
| Notes | Cams: 12 mm square cut-out, supplied on request. |

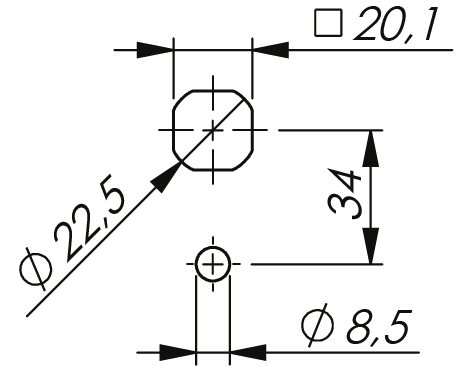

| Cutout | Combi style with an additional Ø 8.5 mm hole |
| Cylinder information | Supplied with two keys |
| Choose CAD format here:
To download CAD-Files for this product |
| Download here: |
Products marked with * are key-locking and are supplied with two keys.
