Compression Handle 36-56 mm

Name: Compression Handle 36-56 mm
Availability: OutOfStock

Index Code:

2-215

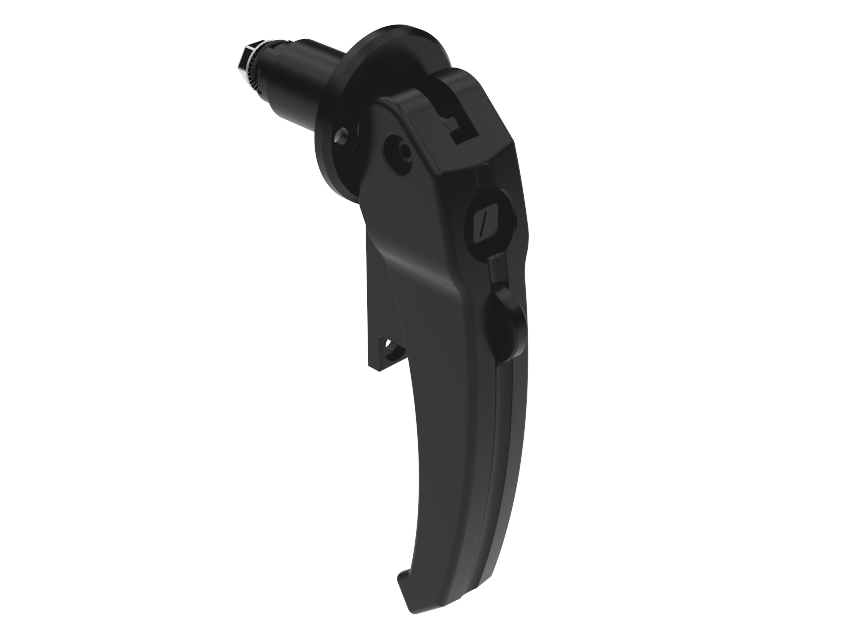

Padlockable compression handle with insert and 6 mm compression stroke. Spring loaded padlock loop retracts when not in use. Mounting with rivets or screws (not included). The C-dimension in the drawing is the compressed position.

DownloadsMaterial

Download PDF	Product Data Sheet
Download PDF	Recommended Tightening Torque

Handle	Glass fibre reinforced polyamide (PA6GF30)
Housing	Zinc die cast, black coated
Insert, pin and padlock loop	Zinc die cast, black passivated
Screw	Steel, zinc plated

To download CAD-files, you need an Industrilas account. It only takes a minute.

A product number is created by combining the figures in each column (AAAAAABB-CCCC)

AAAAAA	Description
275011	Handle

BB	C=
30	36 mm
40	46 mm
50	56 mm

CCCC	Insert
1201	Hexagon 11
1207	Square 6
1208	Square 7
1209	Square 8
1210	Square 8 / slotted
1212	Triangle 7
1213	Triangle 8
1214	Triangle 10
1216	Double Bit 3
1217	Double Bit 5
1218	Daimler Benz
1219	Triangle 10 / SEN
1220	Slotted
1221	Recessed hexagon 10
1222	Recessed hexagon 8
1223	Hexagon 8,5
1224	ES3
1241	Slotted recessed
1247	Recessed hexagon 8 / 3 mm pin
1248	Slotted recessed square 8

	Round Rods pointed end (S-L) Steel (2-540)
	Round Rods with loop 15 mm rollers (R-L) Steel (2-541)
	Round Rods with Flat End (P) Steel (2-540)
	Round Rods for adapters 15 mm rollers (R) Steel (2-541)
	Round Rods for adapters 25 mm rollers (R) Steel (2-545)
	Round Rods pointed end (S-L) SS 304 (2-540)
	Round Rods for adapters 25 mm rollers (R) SS 304 (2-545)
	Round Rods for adapters 15 mm rollers (R) SS 304 (2-541)
	Round Rods with Flat End (P) SS 304 (2-540)
	Round Rods with loop 15 mm rollers (R-L) SS 304 (2-541)
	Round Rods with loop 25 mm rollers (R-L) SS 304 (2-545)
	Round Rod with loop 25 mm (R-L) Steel (2-545)

	Single-Point Cams Steel (2-481)
	Three-Point Cams Steel (2-491)
	Single-Point Cams SS 304 (2-481)
	Single-Point Cams SS 316 (2-481)
	Three-Point Cams SS 304 (2-491)

	Rod Guides Polyamide (2-560)
	Rod Guides (2-570)
	Bushings for round rods (2-570)
