Tool operated insertPadlock loopClassified according to IP66Universally right or left mountedStainless steel

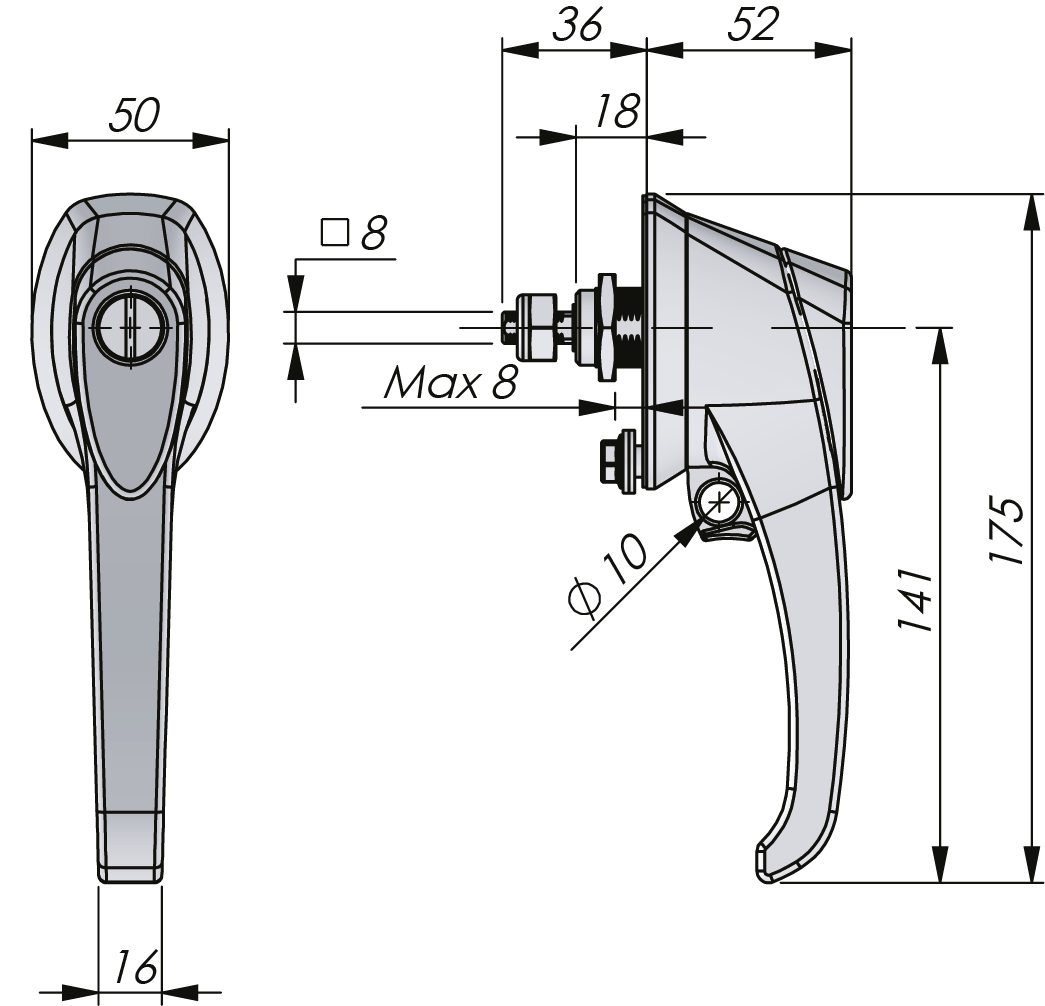

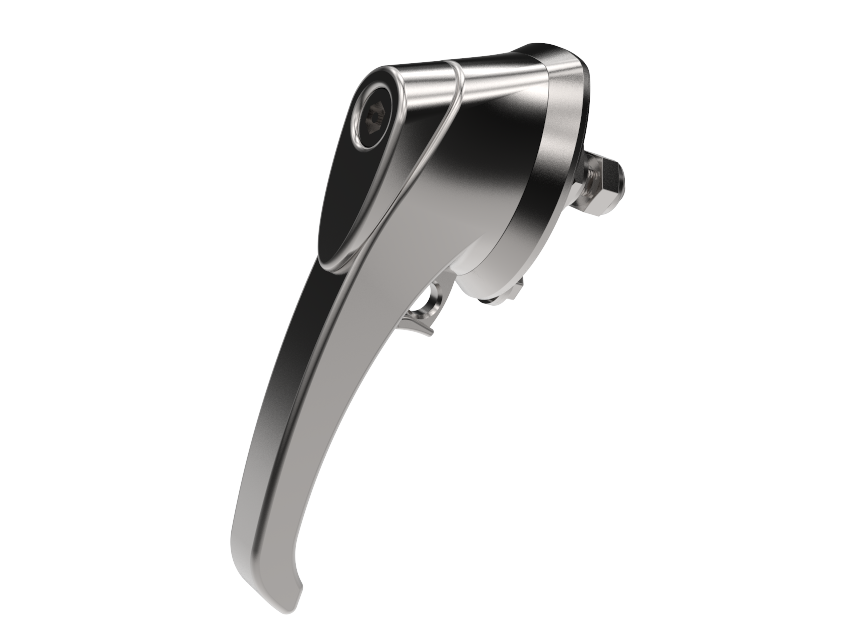

Defeater Handle Compact Stainless Steel 36 mm

Index Code:
6-210

Padlockable defeater handle in stainless steel, equipped with a built-in spring-loaded insert, providing a defeater function that is compliant with two-handed safety operations requirements. To operate the handle, turn the insert, push the padlock loop, and turn the handle.

The cast-in threaded steel shaft allows simple cam adjustment. Removable stop for clockwise or counterclockwise operation. Supplied with nut, screws and gasket. Protection degree IP66.

Non-stock item, price and delivery time upon request.

Download PDF
Product Data Sheet
Download PDF
Recommended Tightening Torque
HandleStainless steel 304
StandardsIP66

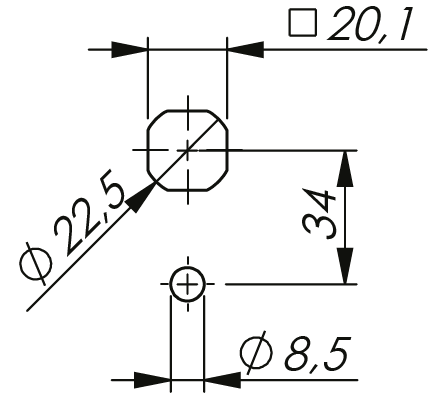

CutoutCombi style with an additional Ø 8.5 mm hole
Notes

Cams: With 12 mm square cut-out, supplied on request.
