Handle rotation 90° in both directionsOpening angle of hinges, applicable angle shown in numbers

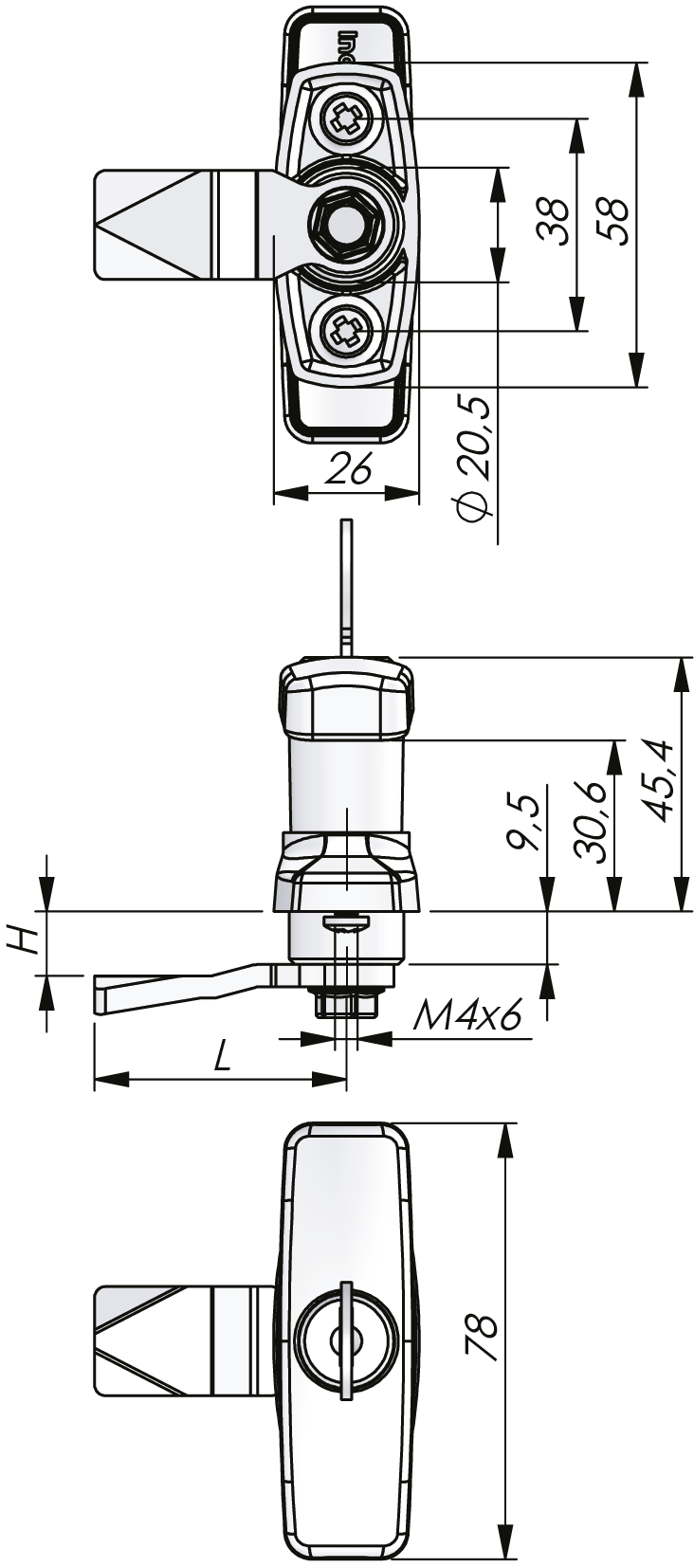

Quarter-Turn T-Handle

Index Code:
2-276

Quarter-turn T-handle in locking or non-locking version that opens by turning the handle clockwise or counter-clockwise. Housing for assembly with screws from inside. Supplied with two mounting screws. Protection degree IP54.

Download PDF
Product Data Sheet
Download PDF
Recommended Tightening Torque
Cam and screwSteel, zinc plated
CylinderZinc die cast, stainless steel 304 cap and dust shutter
HandleZinc die cast, chrome plated or black texture powder coated
HousingZinc die cast, chrome plated or black texture powder coated
Key extractionOpen / Closed
Cylinder informationSupplied with two keys
StandardsIP54
To download CAD-files, you need an Industrilas account. It only takes a minute.
or Create Account
A product number is created by combining the figures in each column (AAAA-BCCDEF-HHLL)
AAAA Handle
2511T-handle
B Material / Finish
1Zinc / Chrome
6Zinc / Black
CC Cylinder
00Non-locking
80Keyed alike IL101
81Keyed alike IL0333
90Keyed to differ
D Opening rotation
2Counter-clockwise
3Clock-wise
E Assembly
1IP54 - enclosed cam
2IP54 - assembled
F Material cam
0Steel
HHLL H/L in mm
0000No cam
04454 / 45
06456 / 45
08458 / 45
104510 / 45
124512 / 45
144514 / 45
164516 / 45
184518 / 45
204520 / 45
224522 / 45
244524 / 45
264526 / 45
284528 / 45
304530 / 45
324532 / 45
344534 / 45
364536 / 45
384538 / 45
404540 / 45
424542 / 45
444544 / 45
464546 / 45
484548 / 45
504550 / 45

* Master key system on request.
