Compression L-handle Stainless Steel
Index Code:6-162

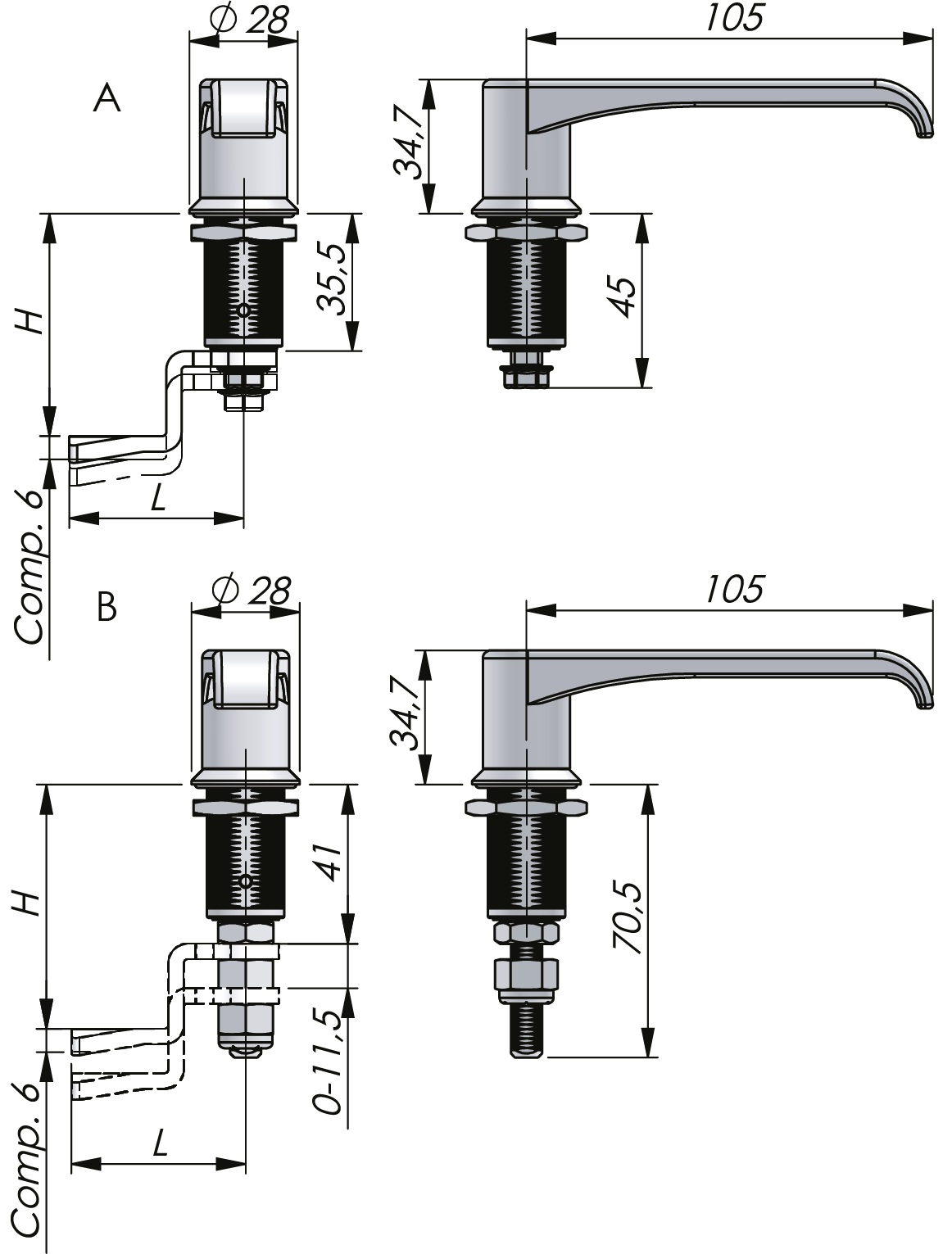

Compression L-handle closed and tightened with a single half-turn motion. The first 90° turn moves the cam 90° and the second 90° turn retracts the cam 6 mm. Protection degree IP69K and waterproof according to NEMA 4.
Available in two latch types: cam mounted at fixed position and cam mounted at an adjustable position. The adjustable version offers an extended, threaded shaft which allows you to place the cam along its entire length. The cam is fixed with counter-nuts.
Cams are ordered separately.
Download PDF | Product Data Sheet |
Download PDF | Recommended Tightening Torque |
Counter-nuts | Stainless steel 304 |
---|---|
Handle | Stainless steel 304 |
Housing | Stainless steel 304 |
Nut | Stainless steel 303 |
Cutout | COMBI |
---|---|
Standards | IP69K NEMA 4 DIN EN 61373 |
